Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

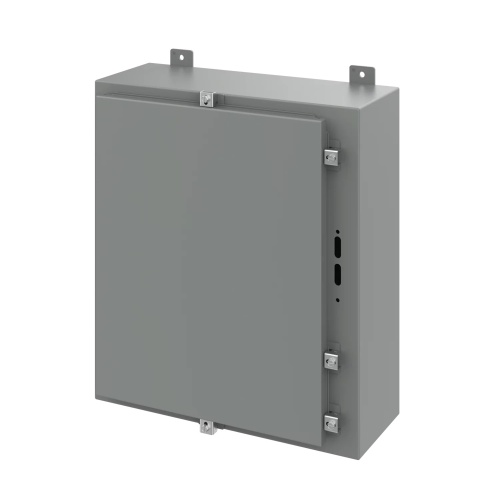

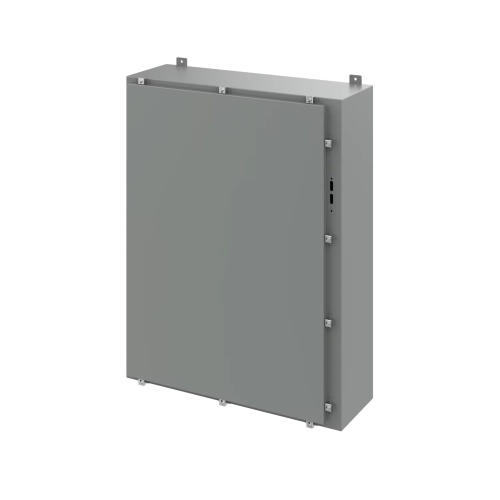

nVent Hoffman A48HS3712LP Stainless Steel Disconnect Enclosure
Normally In Stock
Code: 16210
nVent Hoffman A48HS3712LP Disconnect Enclosure. 48" x 37.38" x 12" (HxWxD). Steel Type 4 with clamp latches and continuous hinge includes Bracket welded to door for attaching disconnect door catch (interlock), Instructions to locate and install disconnect switches, circuit breakers and operating mechanisms. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$2739.01
Sale Price
$2282.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A48HS3712LP Stainless Steel Disconnect Enclosure For disconnect applications in which a clamp-secured door is preferred. Clamps on three sides of the door keep liquid and contaminants out. Preferred cutout accepts major Manufacturer disconnect switches and circuit breakers.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Depth
12"
Enclosure Latch Type
Clamp
Enclosure Interior Color
Gray
Enclosure Composition
Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure Height
48"
Enclosure Width
37.38"
Component
Disconnect Enclosure
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Cutout Type
Preferred Cutout
Manufacturer
Hoffman
Features
Removable door with continuous hinge
External-formed flange around all sides of enclosure opening
Stainless steel door clamps on three sides of door
Type 4 rated door gasket
External mounting brackets
Seams continuously welded and ground smooth
Collar studs for mounting optional panels
Adjustable door interlock bracket fastened to door) and instructions for installing disconnects
Bonding provision on door
Holes in body for mounting disconnect operating handle and operating mechanism
Downloads
Hoffman A48HS3712LP 2D DXF CAD.zipHoffman A48HS3712LP 3D STEP CAD.zipHoffman A48HS3712LP Allen-Bradley and Fixed Depth Disconnect Devices Instructions.pdfHoffman A48HS3712LP CAD Drawing.zipHoffman A48HS3712LP CSA Certification.pdfHoffman A48HS3712LP Declaration of Compliance.pdfHoffman A48HS3712LP Dimension Drawing.gifHoffman A48HS3712LP Enclosure Alterations Manual.pdfHoffman A48HS3712LP Enlcosure Alterations Instructions.pdfHoffman A48HS3712LP EU Certification.pdfHoffman A48HS3712LP Instruction Manual.pdfHoffman A48HS3712LP Repainting Instructions.pdfHoffman A48HS3712LP Spec Sheet.pdfHoffman A48HS3712LP UL Certification.pdf
