Code: 16189

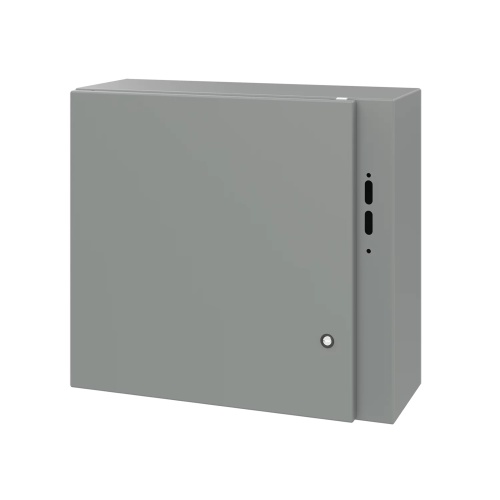

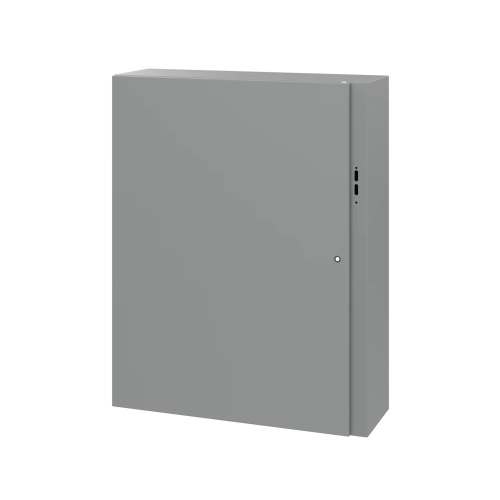

nVent Hoffman CDSC483812 CONCEPT Steel Disconnect Enclosure
nVent Hoffman CDSC483812 CONCEPT Disconnect Enclosure. 48" x 38" x 12" (HxWxD). ANSI 61 Gray Steel Type 4 with 3-point latch with handle includes Door interlock bracket welded to door, Door latching system (2-point or 3-point) installed on door, Instructions to locate and install disconnect, Hardware kit consisting of padlocking door handle, panel mounting nuts, grounding hardware and sealing washers for mounting holes. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$2306.53
Sale Price
$1922.11
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman CDSC483812 CONCEPT Steel Disconnect Enclosure Use CONCEPT ,Disconnect Enclosures in applications that require stylized design features and a preferred cutout that accepts major Manufacturer disconnect switches and circuit breakers. Furnished with Enclosures: Door interlock bracket welded to door, Three-point door latching system installed on door, Instructions to locate and install disconnect, Hardware kit consisting of padlocking door handle, panel mounting nuts, grounding hardware and sealing washers for mounting holes
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Depth
12"
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Latch Type
Tool-To-Open
Enclosure Composition
Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure Height
48"
Enclosure Width
38"
Component
Disconnect Enclosure
Line
CONCEPT
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Cutout Type
Preferred Cutout
Manufacturer
Hoffman
Features

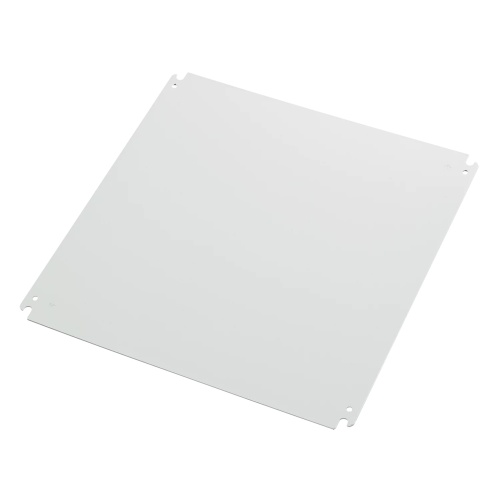

Panel mounting studs fit optional Concept panels and other accessories
Bonding provision on door, grounding stud on body
Holes in body for mounting disconnect operating handle and operating mechanism

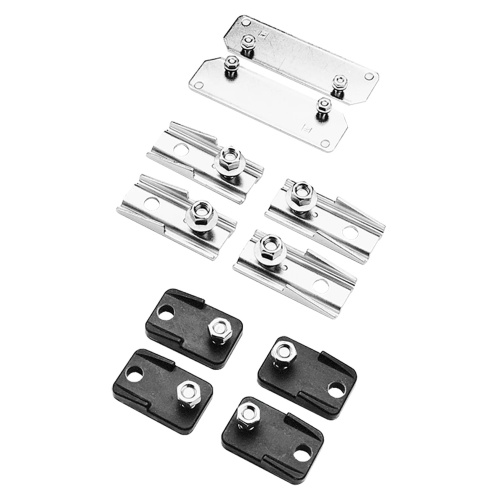

Mounting holes in back of body for direct mounting for optional external mounting brackets
External-formed 90-degree body flange channels away liquids
Seams continuously welded and ground smooth
Removable door with hidden hinges for clean, aesthetic appearance
Door alignment device on doors wider than 30 inches (762mm)
Seamless foam-in-place gasket

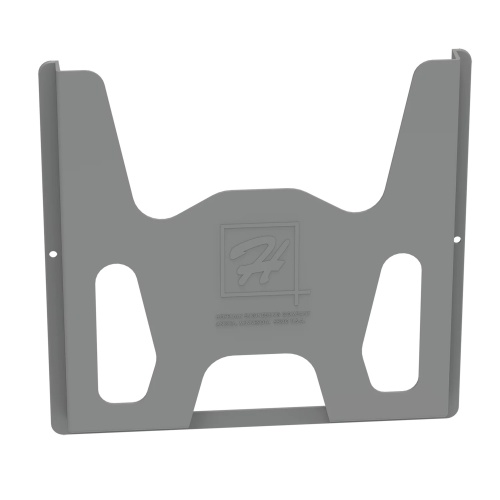

Provisions on door for optional high-impact thermoplastic data pocket
Corner-formed doors
Concept-style latching system interlocks with the disconnect handle for added safety
Unique integrated door handle with tool-to-open feature and padlocking option
Four hinges on 60-inch-high enclosures
Simple easy-to-remove and install hinge pins with captivation clip
High-torque threadless studs and fasteners on door
V-shaped, fiber-wrapped gasket on the disconnect side of the body flange provides extra deflection of water
Self-grounding latch system with double seal
