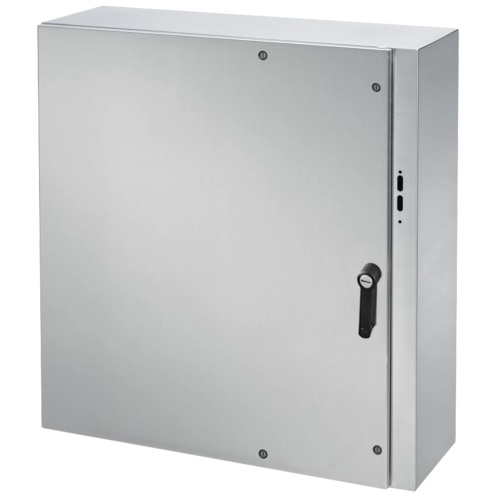

nVent Hoffman CDSC483812SSR CONCEPT Stainless Steel Disconnect Enclosure
Normally In Stock
Code: 16201
nVent Hoffman CDSC483812SSR CONCEPT Stainless Steel Disconnect Enclosure. 48" x 38" x 12" (HxWxD). 304 Stainless Steel Type 4x with quarter-turn latches and 3-point latch with handle includes Door interlock bracket welded to door, Door latching system (2-point or 3-point) installed on door, Instructions to locate and install disconnect, Hardware kit consisting of padlocking door handle, panel mounting nuts, grounding hardware and sealing washers for mounting holes. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$6819.06
Sale Price
$5682.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman CDSC483812SSR CONCEPT Stainless Steel Disconnect Enclosure For use in disconnect applications that require larger controls and stylized design features, CONCEPT ,Disconnect Enclosures feature two additional quarter-turn latches and a door-alignment device for secure closure and security. Furnished with Enclosures:
- Door interlock bracket welded to door
- Door latching system (2-point or 3-point) installed on door
- Instructions to locate and install disconnect
- Hardware kit consisting of padlocking door handle, panel mounting nuts, grounding hardware, and sealing washers for mounting holes
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
White
Enclosure Depth
12"
Enclosure Lock Type
Padlocking
Enclosure Latch Type
Tool-To-Open
Enclosure Composition
Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
48"
Enclosure Width
38"
Component
Disconnect Enclosure
Line
CONCEPT
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Cutout Type
Preferred Cutout
Manufacturer
Hoffman
Features
Panel mounting studs fit optional Concept panels and other accessories
Integral door alignment device to properly align door and gasket to body flange
Holes provided in body for mounting disconnect operating handle and operating mechanism
Mounting holes in back of body for direct mounting or for optional external mounting brackets
External-formed 90-degree body flange
Seams continuously welded and ground smooth
Stainless steel hidden hinges
Seamless foam-in-place gasket
Provisions on door for optional high-impact thermoplastic data pocket
Corner-formed doors are interchangeable and easily removable by pulling captive hinge pins
Standard full-access door opening
Door latching system: latch installed on door with interlock mechanism on the disconnect handle for added safety, four quarter-turn latches also included
Adjustable door interlock bracket fastened to door
Self-grounding latch system with double seal
Bonding provision on door, grounding stud on body
Unique integrated door handle with tool-to-open feature and padlock option installed on
Downloads
Hoffman CDSC483812SSR 2D DXF CAD.zipHoffman CDSC483812SSR 3D STEP CAD.zipHoffman CDSC483812SSR CAD Drawing.zipHoffman CDSC483812SSR Declaration of Compliance.pdfHoffman CDSC483812SSR Dimension Drawing.gifHoffman CDSC483812SSR EU Certification.pdfHoffman CDSC483812SSR Instruction Manual.pdfHoffman CDSC483812SSR Spec Sheet.pdfHoffman CDSC483812SSR UL Certification.pdf
