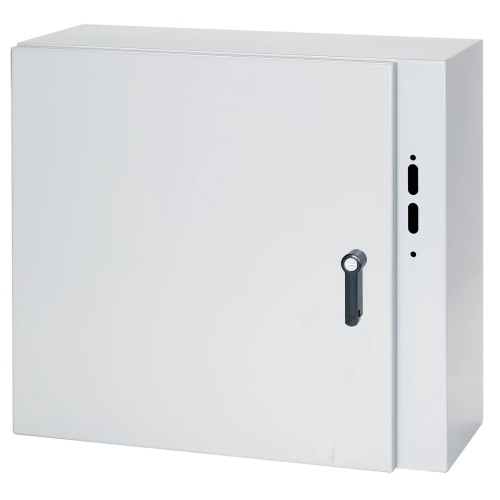

nVent Hoffman CDSC30268SS CONCEPT Stainless Steel Disconnect Enclosure
Normally In Stock
Code: 16196
nVent Hoffman CDSC30268SS CONCEPT Stainless Steel Disconnect Enclosure. 30" x 26" x 8" (HxWxD). 304 Stainless Steel Type 4x with 2-point latch with handle includes Door interlock bracket welded to door, Door latching system (2-point or 3-point) installed on door, Instructions to locate and install disconnect, Hardware kit consisting of padlocking door handle, panel mounting nuts, grounding hardware and sealing washers for mounting holes. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$4327.32
Sale Price
$3606.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman CDSC30268SS CONCEPT Stainless Steel Disconnect Enclosure Use CONCEPT ,Disconnect Enclosures in applications that require stylized design features and a preferred cutout that accepts major Manufacturer disconnect switches and circuit breakers. Furnished with Enclosures: Door interlock bracket welded to door, Three-point door latching system installed on door, Instructions to locate and install disconnect, Hardware kit consisting of padlocking door handle, panel mounting nuts, grounding hardware and sealing washers for mounting holes
Specifications
Enclosure Depth
8"
Enclosure Hinge Type
Standard Hinge
Enclosure Lock Type
Padlocking
Enclosure Latch Type
Tool-To-Open
Enclosure Composition
Stainless Steel
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
30"
Enclosure Width
26"
Component
Disconnect Enclosure
Line
CONCEPT
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Number of Doors
1 Door
Cutout Type
Preferred Cutout
Manufacturer
Hoffman
Features
Holes provided in right-hand flange are for mounting disconnect operating handle and operating mechanism
External-formed 90-degree body flange
Integral door ramp to properly align door and gasket to body flange
Panel mounting studs fit optional Concept panels and other accessories (purchase panels separately)
Seams continuously welded and ground smooth
Disconnect model of Concept enclosure series, includes 3 point latching for closure.
Mounting holes in back of body for direct mounting or for optional external mounting brackets
Provisions on door for optional high-impact thermoplastic data pocket
Corner formed doors are interchangeable and easily removable by pulling captive hinge pins
Standard full-access door opening
Stainless steel hidden hinges
Seamless foam-in-place gasket
Three-point door latching system installed on door interlocks with disconnect handle for added safety
Unique integrated door handle with tool-to-open feature and padlock option installed on door
Self-grounding latch system with double seal
Bonding provision on door, grounding stud on body
Adjustable door interlock bracket fastened to door
Downloads
Hoffman CDSC30268SS 2D DXF CAD.zipHoffman CDSC30268SS 3D STEP CAD.zipHoffman CDSC30268SS CAD Drawing.zipHoffman CDSC30268SS Declaration of Compliance.pdfHoffman CDSC30268SS Dimension Drawing.gifHoffman CDSC30268SS EU Certification.pdfHoffman CDSC30268SS Instruction Manual.pdfHoffman CDSC30268SS Spec Sheet.pdfHoffman CDSC30268SS UL Certification.pdf
