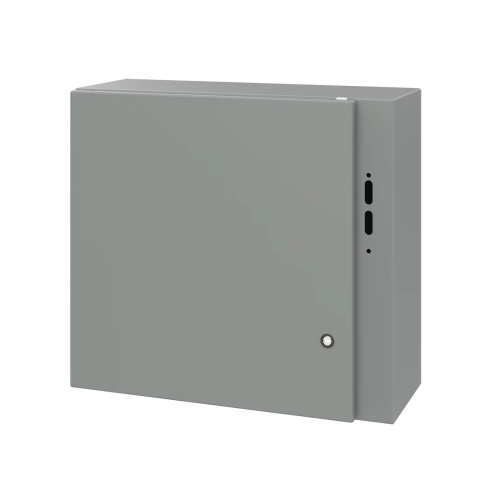

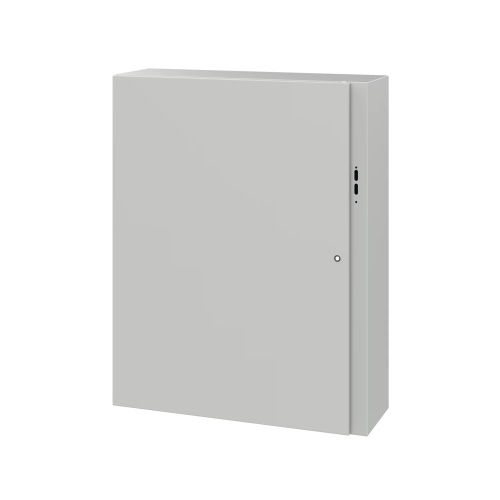

nVent Hoffman CDSC483812LG CONCEPT Steel Disconnect Enclosure
nVent Hoffman CDSC483812LG CONCEPT Disconnect Enclosure. 48" x 38" x 12" (HxWxD). RAL 7035 Gray Steel Type 4 with 3-point latch with handle includes Door interlock bracket welded to door, Door latching system (2-point or 3-point) installed on door, Instructions to locate and install disconnect, Hardware kit consisting of padlocking door handle, panel mounting nuts, grounding hardware and sealing washers for mounting holes. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$2348.09
Sale Price
$1956.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman CDSC483812LG CONCEPT Steel Disconnect Enclosure Use CONCEPT ,Disconnect Enclosures in applications that require stylized design features and a preferred cutout that accepts major Manufacturer disconnect switches and circuit breakers. Furnished with Enclosures: Door interlock bracket welded to door, Three-point door latching system installed on door, Instructions to locate and install disconnect, Hardware kit consisting of padlocking door handle, panel mounting nuts, grounding hardware and sealing washers for mounting holes
