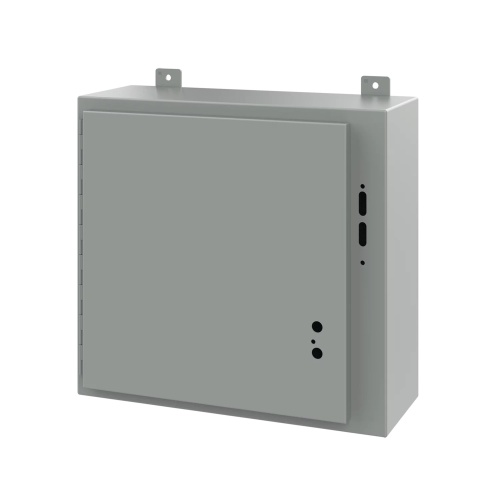

nVent Hoffman A36SA3208LPPL Steel Disconnect Enclosure W/Handle
Normally In Stock
Code: 16120
nVent Hoffman A36SA3208LPPL Preferred Cutout Disconnect Enclosure With Handle. 36" x 31.38" x 8" (HxWxD). Steel Type 12 Includes latch pivot post(s) and cover interlock bracket welded to door, cover latch bar for door, and instructions for installing disconnects. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$1661.63
Sale Price
$1384.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A36SA3208LPPL Steel Disconnect Enclosure W/Handle Disconnect Enclosure with Handle, Type 12 accept major Manufacturer disconnect circuit breakers and switches, products with or without the nVent Hoffman-supplied defeater door handle and handle hardware. Includes latch pivot post(s) and cover interlock bracket welded to door, cover latch bar for door, and instructions for installing disconnects, Model numbers ending with “PL” include handle and handle latching hardware, 14 gauge steel, Removable door with continuous hinge, and Data pocket is high impact thermoplastic.
Specifications
Enclosure Depth
8"
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
White
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Composition
Stainless Steel
Enclosure Height
36"
Enclosure Width
31.38"
Component
Disconnect Enclosure
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Cutout Type
Preferred Cutout
Manufacturer
Hoffman
Features
External-formed flange around all sides of enclosure opening
Bonding provision on door
External mounting brackets
Removable door with continuous hinge
Seams continuously welded and ground smooth
"Model numbers ending with ""PL"" include handle and handle latching hardware"
Data pocket is high impact thermoplastic
Available with or without nVent HOFFMAN supplied padlocking defeater handle and latching system
Holes in body and door for mounting operating handle, operating mechanism, and door closing mechanism
Collar studs for mounting optional panels
Oil-resistant gasket
Includes latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects
Downloads
Hoffman A36SA3208LPPL 2D DXF CAD.zipHoffman A36SA3208LPPL 3D STEP CAD.zipHoffman A36SA3208LPPL CAD Drawing.zipHoffman A36SA3208LPPL CSA Certification.pdfHoffman A36SA3208LPPL Declaration of Compliance.pdfHoffman A36SA3208LPPL Dimension Drawing.gifHoffman A36SA3208LPPL Enclosure Alteration Instructions.pdfHoffman A36SA3208LPPL Enclosure Alterations Manual.pdfHoffman A36SA3208LPPL EU Certification.pdfHoffman A36SA3208LPPL Instruction Manual.pdfHoffman A36SA3208LPPL Repainting Instructions.pdfHoffman A36SA3208LPPL Spec Sheet.pdfHoffman A36SA3208LPPL UL Certification.pdfHoffman A36SA3208LPPL Variable Depth and Flexible Cable Disconnect Devices Instructions.pdf
