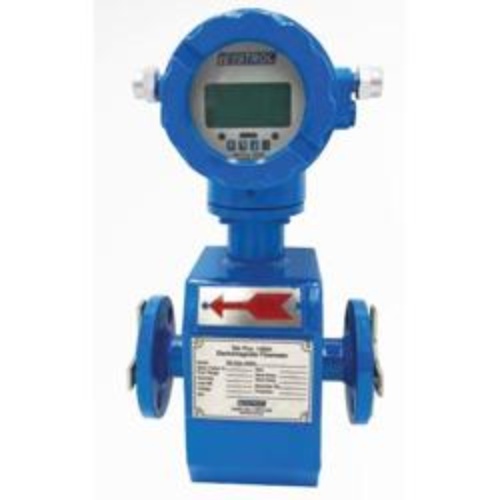

Tek-Trol 1400A-150-1-I-SS-1-1-H Water and Liquid Flow Meter
Normally In Stock
Code: 158134
6", Hard Rubber Liner, SS Electrodes, 150# flange, 4-20mA Out DC
Condition: New
Usually ships within a week$5324.94
Sale Price
$4437.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
1400A-150-1-I-SS-1-1-H Water and Liquid Flow Meter 11.2 - 373.8 SCFH,317.9 - 10584.8 LPM,317898 - 10584756 CCPM,84.1 - 2800.2 GPM,5046 - 168012 GPH 0.5% Accuracy Housing
Specifications
Component
Water And Liquid Flow Meter
Manufacturer
Tek-Trol
(Instrument-Sensor) Temperature Range
176 F
(Instrument-Sensor) Span
11.2 - 373.8 SCFH
(Instrument-Sensor) Span
317.9 - 10584.8 LPM
(Instrument-Sensor) Span
317898 - 10584756 CCPM
(Instrument-Sensor) Span
84.1 - 2800.2 GPM
(Instrument-Sensor) Span
5046 - 168012 GPH
(Instrument-Sensor) Measurement Accuracy
0.50%
Features
Wide range of nominal diameter Size ½” to 28″ (0.04 ft to 2.33 ft) with IP65 protection.
Easy maintenance due to no moving parts.
Uninfluenced by temperature, pressure, viscosity, and density.
Used for wide application, can measure conductive fluid, without reference to fibre, solid or suspending material contained in liquid.
High turndown ratio up to 1:100.
It features high intelligence, with back light LCD display, menu setting control, three grades password
protection, two-way measuring, slight signal removal, auto flow compensation, and other function.
Features high intelligence, which ensure empty pipe detection, self-detection, self-diagnostic functions,
and safety alarms for upper and lower limit.
Features SMART excitation, which ensures zero-point stability, high reliability, and low power consumption.
Lining and electrode available in various materials which can measure nearly all conductive fluids.
It has multiple signal output, pulse or Modbus RS485 or HART® or 4 to 20 mA.
The power supply system has good voltage vibration ability.
Meters batching and blending totalization.
