Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 152748

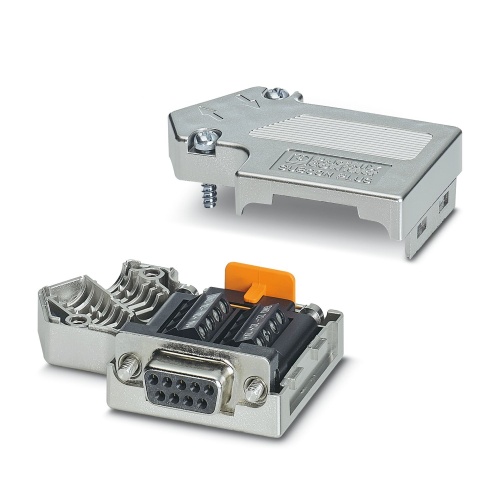

Phoenix Contact 2708119 D-SUB bus connector SUBCON-PLUS-CAN/PG
Normally In Stock
Phoenix Contact 2708119 - IP40 - D-SUB Connection
Condition: New
Usually ships Same Day or Next Day $84.68
Sale Price
$70.57
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

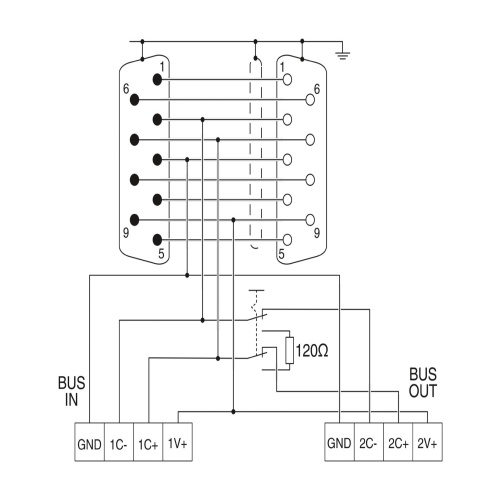

Phoenix Contact 2708119 A D-SUB connector with a 9-position socket is used to connect a programming device, featuring a 35° cable outlet. The bus system includes CAN, CANopen, and SafetyBUS protocols that can achieve speeds of up to 1 Mbps using the PG D-SUB socket. A slide switch allows for the switching on of a termination resistor, while screw terminal blocks are used for pin assignment with specific positions designated for pins 2, 3, 7, and 9.
Specifications
Connector protection
IP40
Manufacturer
Phoenix Contact
Component
Bus Connector
Features
Separate terminal blocks for bus cables
Segment-by-segment startup
High level of EMC
Assembly under field conditions
Flexibility in terms of cable entry selection
High transmission speed
Suitable for bus cables according to CiA Draft Recommendation 303-1 with an outside diameter of 8 mm
Termination resistor can be connected
Change to the D-SUB orientation through a reversible connection block
