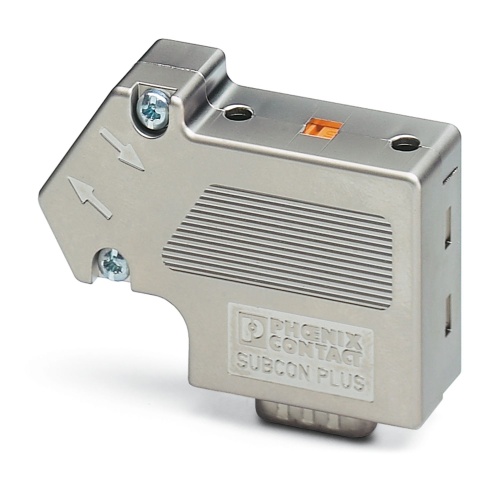

Phoenix Contact 2708999 D-SUB bus connector SUBCON-PLUS-CAN/SC2
Normally In Stock
Code: 152712
Phoenix Contact 2708999 - IP40 - Screw Connection
Condition: New
Usually ships Same Day or Next Day $66.05
Sale Price
$55.04
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

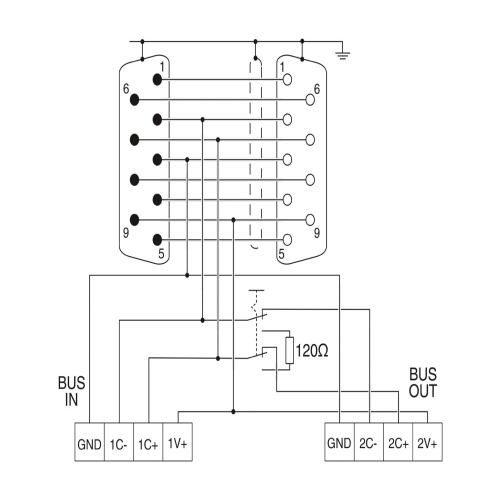

Phoenix Contact 2708999 A D-SUB connector with a 9-position socket features two 35° cable outlets leading to two terminal block rows and operates within a bus system that includes CAN, CANopen, and SafetyBUS protocols, with transmission speeds reaching up to 1 Mbps. The termination resistor can be activated using a slide switch, while the pin assignment is designated as 2, 3, 7, and 9 for screw connection of terminal blocks.
Specifications
Connector protection
IP40
Manufacturer
Phoenix Contact
Component
D-SUB
Sub Component
Bus Connector
Features
Separate terminal blocks for bus cables
Segment-by-segment startup
High transmission speed
Flexibility in terms of cable entry selection
High level of EMC
Assembly under field conditions
Suitable for bus cables according to CiA Draft Recommendation 303-1 with an outside diameter of 8 mm
Termination resistor can be connected
Change to the D-SUB orientation through a reversible connection block
