Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 152716
Phoenix Contact 2744694 D-SUB bus connector SUBCON-PLUS-CAN
Normally In Stock
Phoenix Contact 2744694 - IP40 - Screw Connection
Condition: New
Usually ships Same Day or Next Day $66.05
Sale Price
$55.04
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

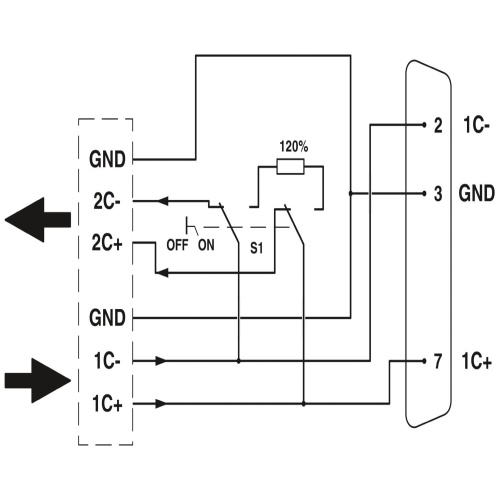

Phoenix Contact 2744694 A D-SUB connector with a 9-position socket features two 35° cable outlets in one terminal block row and supports a bus system including CAN, CANopen, and SafetyBUS at speeds up to 1 Mbps. The termination resistor can be activated via a slide switch, while screw connections are used for the terminal blocks with pin assignments at positions 2, 3, and 7.
Specifications
Connector protection
IP40
Manufacturer
Phoenix Contact
Component
Bus Connector
Features
Separate terminal blocks for bus cables
High transmission speed
Segment-by-segment startup
Flexibility in terms of cable entry selection
Assembly under field conditions
High level of EMC
Suitable for bus cables according to CiA Draft Recommendation 303-1 with an outside diameter of 8 mm
Termination resistor can be connected
Change to the D-SUB orientation through a reversible connection block
Code: 152716
Phoenix Contact 2744694 D-SUB bus connector SUBCON-PLUS-CAN
$66.05
Sale Price
$55.04
MUST BUY IN PACKS OF 50
