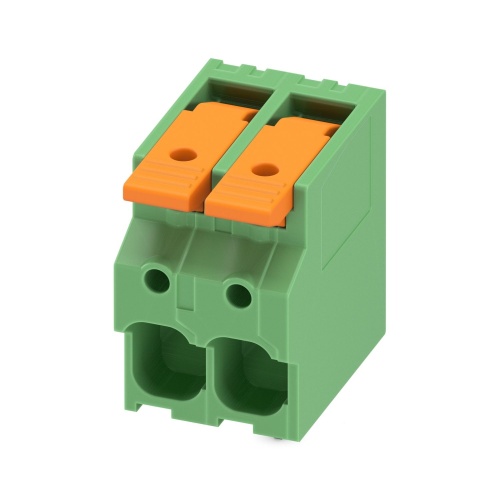

Phoenix Contact 1098167 A printed circuit board terminal has specific specifications: it can handle a nominal current of 41 A and is rated for a voltage of up to 1000 V. The cross-sectional area is 6 mm2 and features two potential leads, one row with two positions, and follows the LPT 6/ pitch of 7.5 mm. Connections are made using Lever Push-in technology and mounted through wave soldering, with the conductor and PCB connection direction at 0 degrees. The terminal has a green color and uses a zigzag pin layout for W and Solder pins [P] that measure 3.6 mm long.
