Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

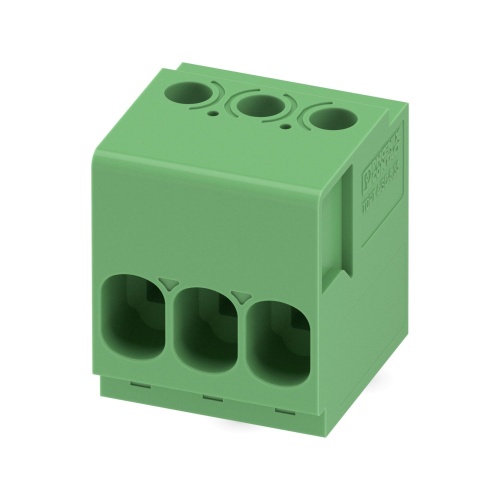

Phoenix Contact 1017515 PCB terminal block TDPT 4/ 3-SC-6,35-ZB
Normally In Stock
Code: 148439
Phoenix Contact 1017515 TDPT 4/ 3-SC-6,35-ZB ,Copper Alloy,PA,I PCB terminal block
Condition: New
Usually ships Same Day or Next Day $2.34
Sale Price
$1.95
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1017515 The printed circuit board terminal has specific characteristics, including a nominal current of 41 A, a rated voltage of 1000 V, and a cross section of 4 mm2, accommodating three potentials with one position per row. It features wave soldering mounting and a screw connection with tension sleeve, utilizing an L Slotted screw head. The product range is the TDPT 4/..-SC type, with a pitch of 6.35 mm, while its color is green and has a zigzag pin layout at angle 0°.
Specifications
Connector Amperage
41 Amp
Connector Material
I
Connector Material
PA
Connector Voltage
6 Kv
Connector Voltage
8 Kv
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Sub Component
PCB Terminal Block
Number of Connections
3
Number of Positions
3
Component
PCB
Connector Voltage
1000 Volt
Connector Voltage
800 Volt
Features
Easy to adapt, thanks to their identical size and the same pinning for Push-in spring connections as for screw connections
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
