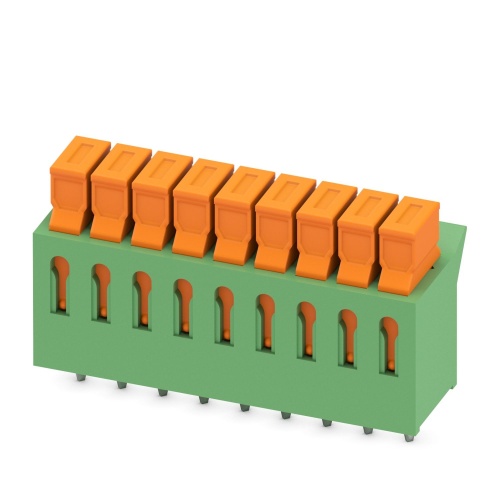

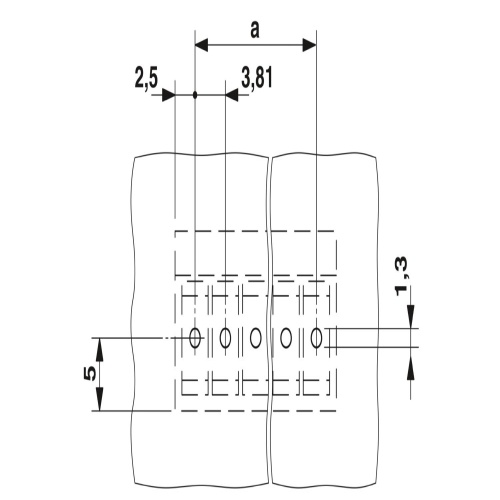

Phoenix Contact 1706248 A printed circuit board terminal is characterized by a nominal current capacity of 5 A, a rated voltage of 160 V, and a cross-sectional area of 0.34 mm². The terminal features nine potentials and an arrangement with one row containing nine positions, each connected via wave soldering using displacement connections. Solder pins are spaced at 3.81 mm pitch, oriented at 0° to the conductor/PCB connection direction, colored green, and arranged in a linear pin layout. Individual solder pins have a length of 3.4 mm, with one per potential, while terminals are packaged for transport in cardboard.
