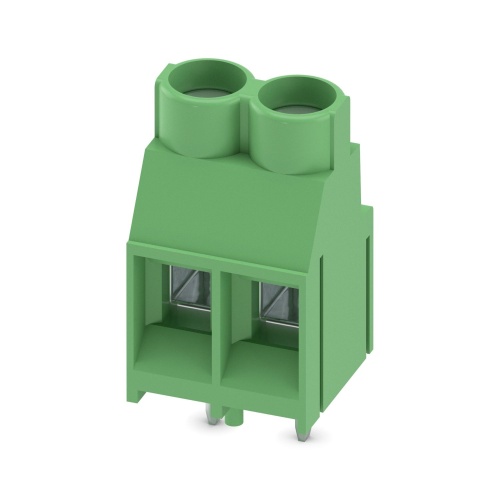

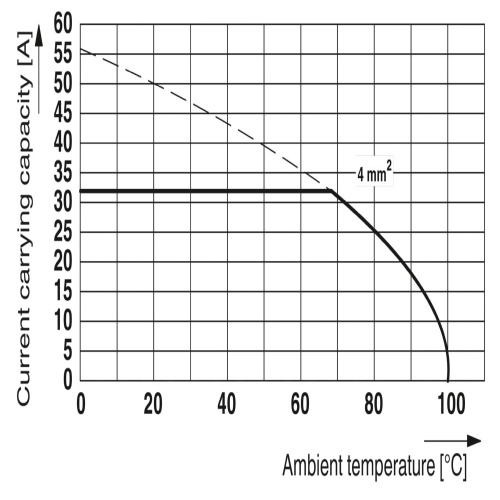

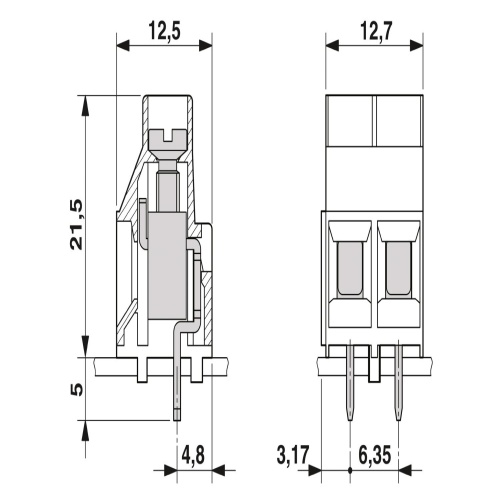

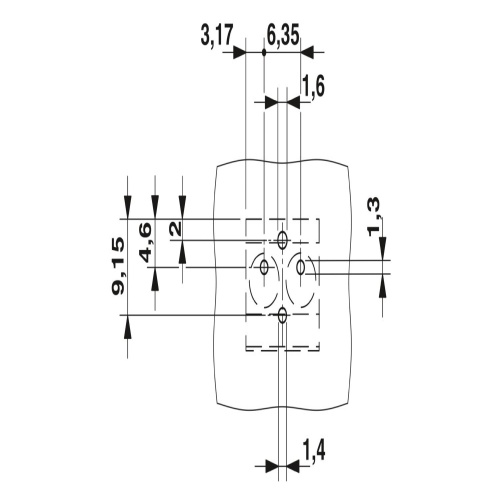

Phoenix Contact 1710056 A printed circuit board terminal features a nominal current rating of 32 A, rated voltage of 630 V, and has a 4 mm2 cross-sectional area with two potentials, one row containing two positions. The product range is MKDSV 5 and has a pitch of 6.35 mm. It utilizes screw connections with tension sleeves, employing L slotted screw heads for wave soldering mounting. The conductor/PCB connection direction is at 0 degrees, with green coloration and linear pinning layout, while the solder pins are spaced at 5.1 mm, one per potential, packaged in cardboard packaging.
