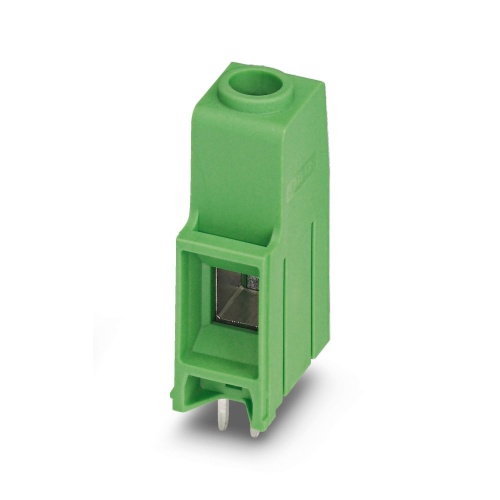

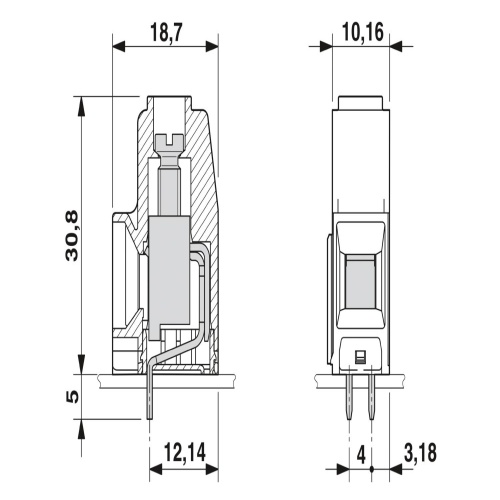

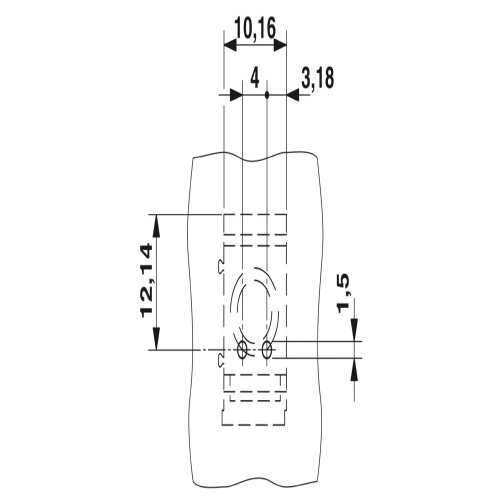

Phoenix Contact 1993763 A printed circuit board terminal features a nominal current rating of 76 A and can handle rated voltages of up to 1000 V. The terminal has a cross-sectional area of 16 mm² and is equipped with one potential, one row, and one position per row, as part of the MKDS 10 HV product range. The connection method involves screwing with a tension sleeve, featuring an L-slotted screw head, which can be mounted using wave soldering techniques. The terminal's orientation allows for 0° conductor/PCB connection direction, and it is colored green. Its pin layout follows a linear front-pinning configuration, with individual solder pins spaced 5 mm apart and each potential featuring two solder pins. The terminals are packaged in cardboard.
