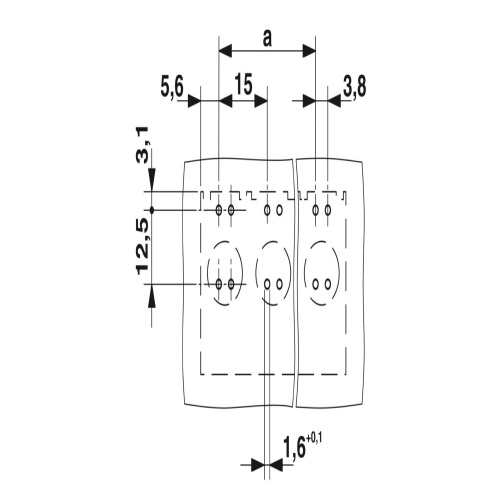

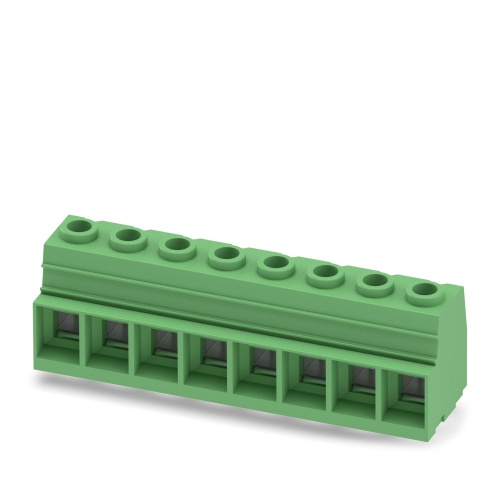

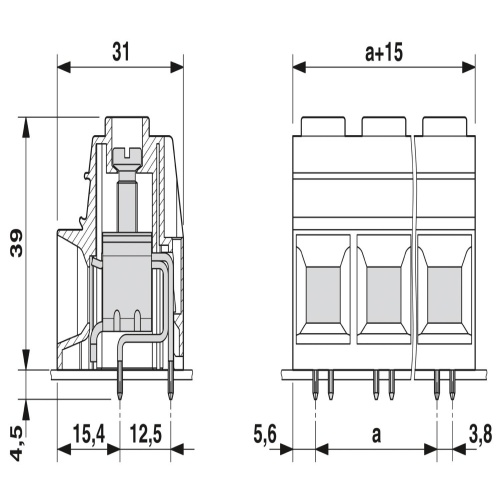

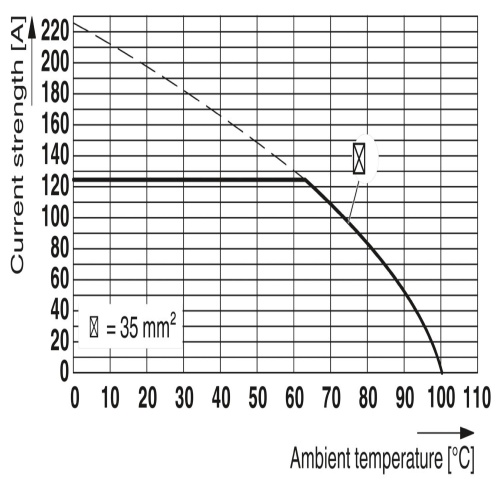

Phoenix Contact 1932643 The printed circuit board terminal features a nominal current capacity of 125A and a rated voltage of 1000V. It has an 8-potential configuration with a single row of eight positions. The terminal's dimensions include a cross-sectional area of 35mm², while its pitch is measured at 15mm. Connection to the PCB can be achieved via wave soldering, where screws are fastened using tension sleeves and Pozidriv screw heads. Additionally, the terminal comes in a range of products (including the MKDSP 25) and is characterized by linear pinning, green coloration, and has a specific layout for its four solder pins per potential.
