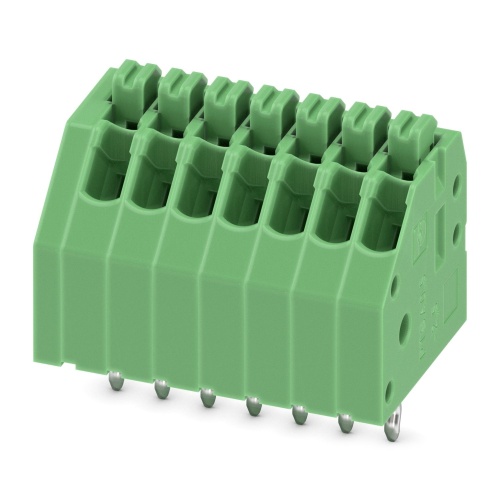

Phoenix Contact 1989793 PCB terminal block PTSA 0,5/ 7-2,5-F
Normally In Stock
Code: 148118
Phoenix Contact 1989793 PTSA 0,5/ 7-2,5-F ,Copper Alloy,PA,I PCB terminal block
Condition: New
Usually ships Same Day or Next Day $1.50
Sale Price
$1.25
MUST BUY IN PACKS OF 100
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

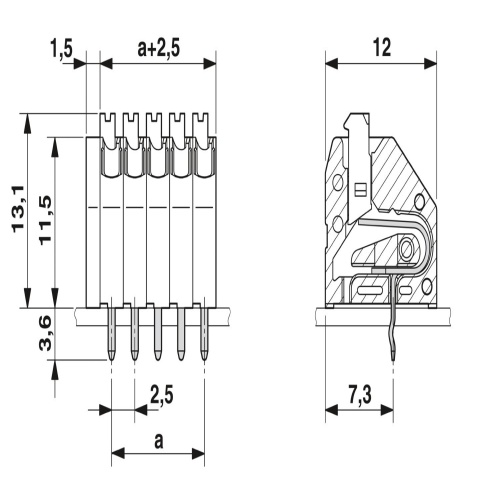

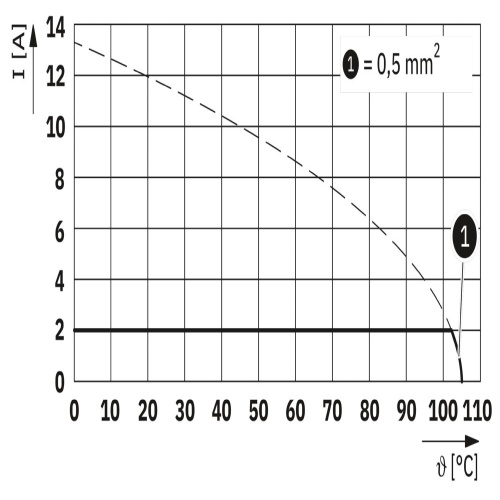

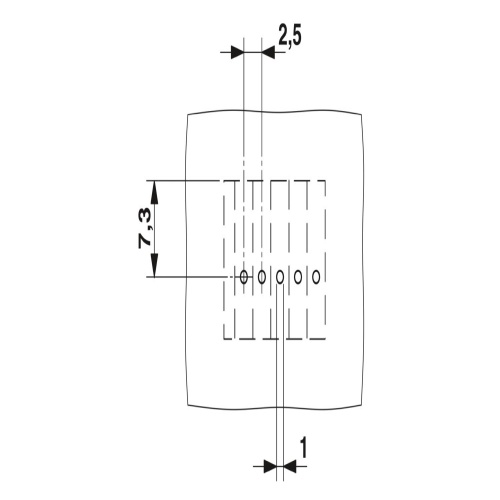

Phoenix Contact 1989793 A printed circuit board terminal features a nominal current of 2 A and is rated for 250 V. The cross section is 0.5 mm², with seven potentials and a linear pin layout. It has a pitch of 2.5 mm and uses push-in spring connections for mounting via wave soldering, with the conductor/PCB connection direction at 45°. The terminal's color is green and is typically packaged in cardboard packaging, featuring solder pins that are positioned to accommodate one-potential per pin layout.
Specifications
Connector Amperage
2 Amp
Connector Voltage
2.5 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Sub Component
PCB Terminal Block
Number of Connections
7
Number of Positions
7
Component
PCB
Connector Voltage
63 Volt
Connector Voltage
320 Volt
Connector Voltage
250 Volt
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Angled connection enables multi-row arrangement on the PCB
