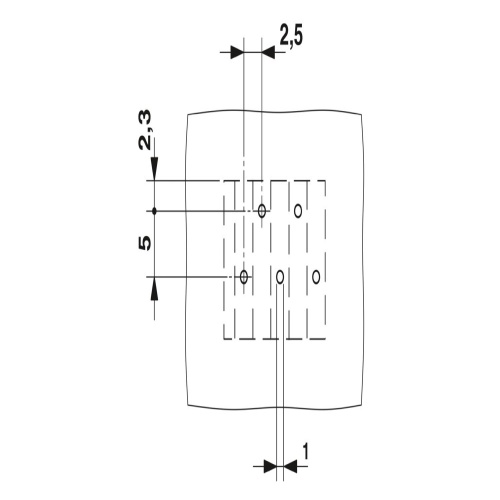

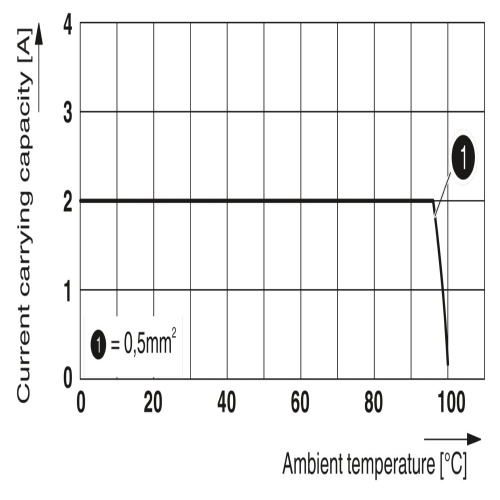

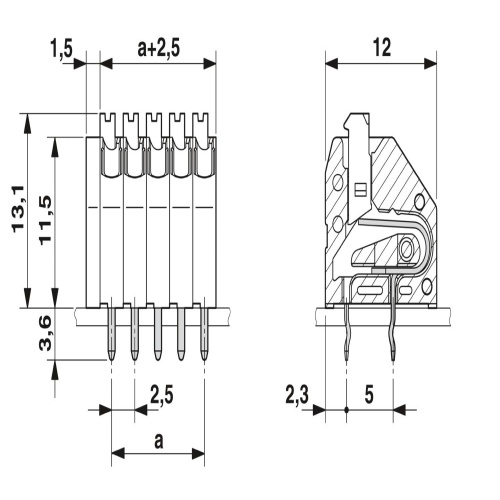

Phoenix Contact 1990164 A printed circuit board terminal features 18 potentials with a nominal current capacity of 2 A and a rated voltage of 250 V, utilizing a push-in spring connection method and mounted via wave soldering. The terminal has a cross-sectional area of 0.5 mm2, with pins arranged in a zigzag pattern and connected at a 45° angle to the conductor. Available in a range of products including PTSA 0,5, these terminals boast a pitch of 2.5 mm and are packed in cardboard, typically using offset soldering legs on a two-row configuration.
