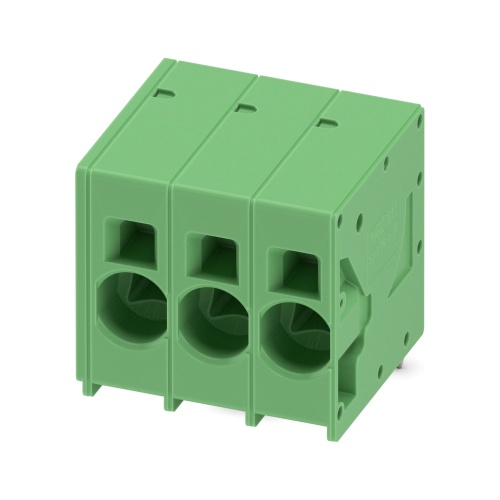

Phoenix Contact 1735794 A printed circuit board terminal features a nominal current rating of 76 A and is rated for a voltage of 1000 V. The terminal has a cross-sectional area of 16 mm² and supports three different potentials, arranged on a single row with three positions per row. Its product range includes SPT 16/..-H configurations, and the terminals have a pitch of 10 mm, utilizing push-in spring connections for mounting via wave soldering. The conductor meets the PCB at a 0° angle, with green color coding and a zigzag pin layout, where each potential has four solder pins with three pins per potential, packaged in cardboard.
