Code: 147593

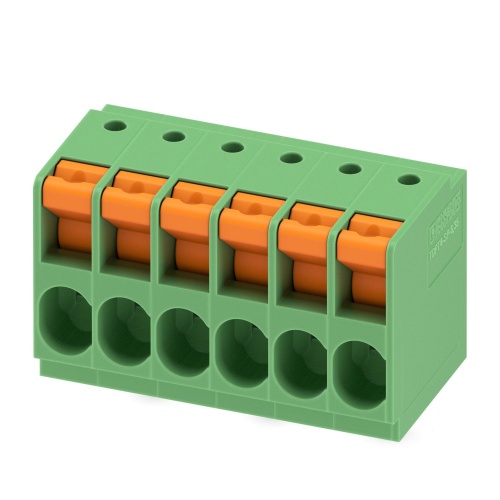

Phoenix Contact 1017525 PCB terminal block TDPT 4/ 6-SP-6,35-ZB
Normally In Stock
Phoenix Contact 1017525 TDPT 4/ 6-SP-6,35-ZB ,Copper Alloy,PA,I PCB terminal block *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day $7.50
Sale Price
$6.25
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1017525 A printed circuit board terminal has a nominal current of 41 A and is rated for up to 1000 V, with a cross-sectional area of 4mm2. It features six potentials and is mounted using wave soldering, employing a push-in spring connection method. The PCB's layout consists of one row with six positions, spaced at 6.35mm pitches, and is characterized by zigzag pinning and green coloration.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Voltage Rating
800 Volt
Terminal Block Number of Connections
6
Terminal Block Amperage
41 Amp
Manufacturer
Phoenix Contact
Component
PCB Terminal Block
Terminal Block Voltage Rating
8 Kv
Terminal Block Voltage Rating
6 Kv
Features
Easy to adapt, thanks to their identical size and the same pinning for Push-in spring connections as for screw connections
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
