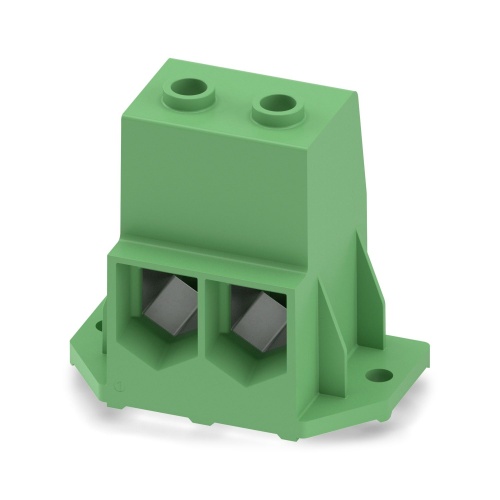

Phoenix Contact 1841869 PCB terminal block MKDSP 95/ 2-20,0-F
Normally In Stock
Code: 147412
Phoenix Contact 1841869 MKDSP 95/ 2-20,0-F ,Copper Alloy,PA,I PCB terminal block
Condition: New
Usually ships within 7-14 days. Call for ship time$51.48
Sale Price
$42.90
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1841869 A printed circuit board terminal with a nominal current rating of 232 A and a rated voltage of 1000 V is available in the MKDSP 95/..-F product range, featuring a cross-sectional area of 95 mm2. The terminal has two potentials and is mounted on a wave soldering PCB using screw connections with tension sleeves and T40 Torx® screw heads, which are connected linearly across 2 positions per row on a single row with no connection direction specified.
Specifications
Connector Amperage
232 Amp
Connector Material
I
Connector Material
PA
Connector Voltage
6 Kv
Connector Voltage
8 Kv
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Sub Component
PCB Terminal Block
Number of Connections
2
Number of Positions
2
Component
PCB
Connector Voltage
1000 Volt
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Quick and convenient testing using integrated test option
Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
