Code: 147407

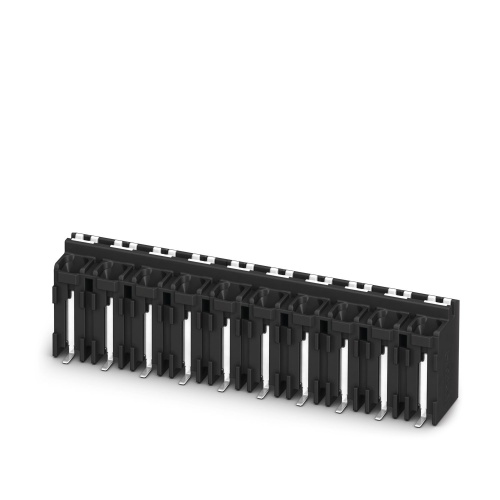

Phoenix Contact 1824491 PCB terminal block SPT-SMD 1,5/10-V-5,08 R88
Normally In Stock
Phoenix Contact 1824491 SPT-SMD 1,5/10-V-5,08 R88 ,Copper Alloy,LCP,IIIa PCB terminal block
Condition: New
Usually ships Same Day or Next Day $9.52
Sale Price
$7.93
MUST BUY IN PACKS OF 200
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

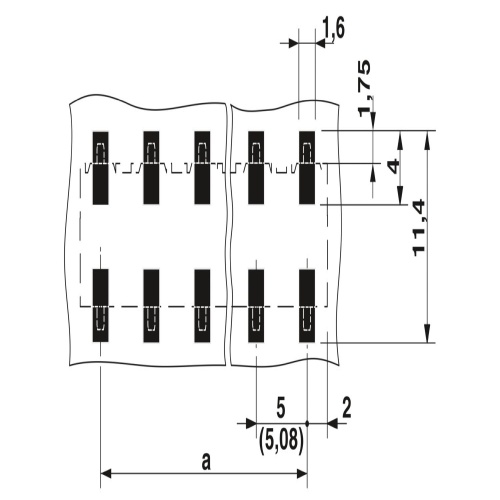

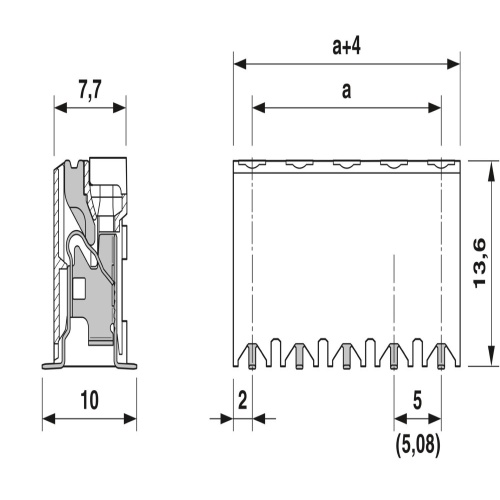

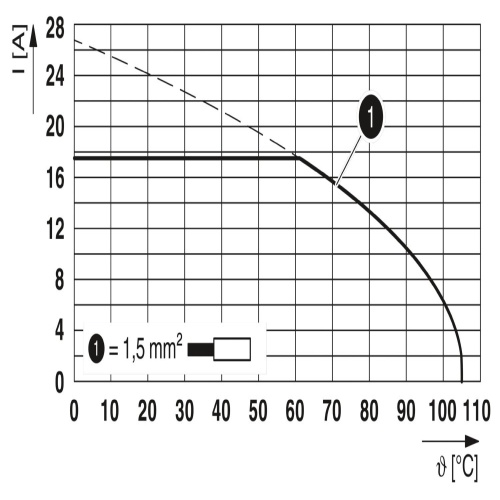

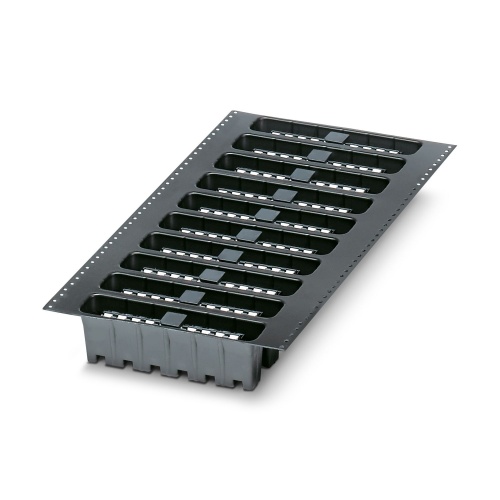

Phoenix Contact 1824491 A printed circuit board terminal has a nominal current rating of 17.5 A and is rated for a voltage of 320 V (III/2). The terminal's cross-sectional area is 1.5 mm², and it has 10 potentials with connections made using push-in spring connections. Mounting occurs via SMD soldering, and the conductor meets the PCB at a 90° angle. The terminal features a linear pad geometry layout with two solder pins per potential, and it is packaged on an 88mm wide tape.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Voltage Rating
250 Volt
Terminal Block Number of Connections
10
Terminal Block Voltage Rating
320 Volt
Manufacturer
Phoenix Contact
Terminal Block Amperage
13.5 Amp
Component
PCB Terminal Block
Terminal Block Voltage Rating
4 Kv
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Designed for integration into the SMT soldering process
Operation and conductor connection from one direction enable integration into front of device
Quick and convenient testing using integrated test option
Two soldering spots per position reduce the mechanical strain on the soldering spots
