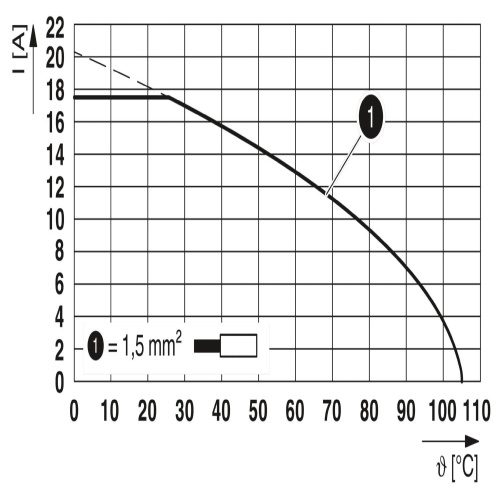

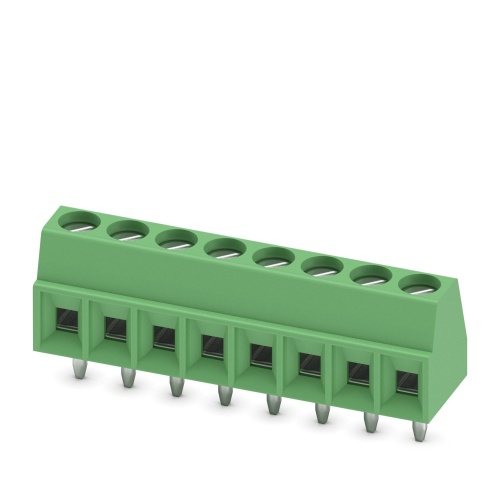

Phoenix Contact 1751303 A printed circuit board terminal features a nominal current rating of 17.5 A and a maximum allowed voltage of 200 V. The cross-sectional area is 1.5 mm2 and the device includes eight potentials with a linear pin layout. It has one row with eight positions, is mounted using wave soldering, and employs screw connections with tension sleeves. The terminals have green color coding, use L slotted screws for secure fastening, and are packaged in cardboard.
