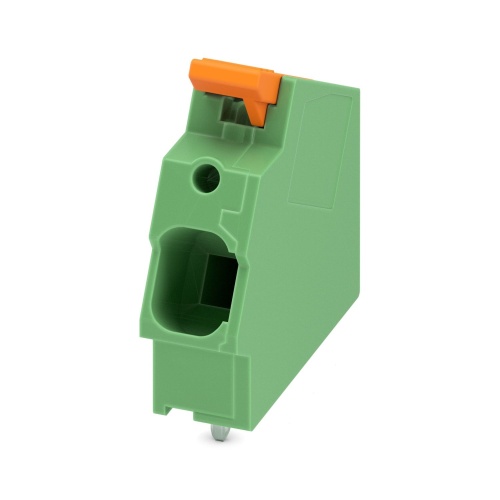

Phoenix Contact 1098174 PCB terminal block LPTA 6/ 1-7,5
Normally In Stock
Code: 147286
Phoenix Contact 1098174 LPTA 6/ 1-7,5 ,Copper Alloy,PA,I PCB terminal block
Condition: New
Usually ships Same Day or Next Day $2.82
Sale Price
$2.35
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1098174 A printed circuit board terminal features a nominal current rating of 41 A and a rated voltage of 1000 V at three-quarters of its capacity. The terminal has a cross-sectional area of 6 square millimeters and is characterized by single potential configuration with one row and single position per row, spanning the entire length. The product range includes LPTA 6/ model, with a pitch of 7.5 mm and employing Lever Push-in connection for mounting. Wave soldering is used for attachment to the PCB, with conductor-PCB connections directed at a 30-degree angle. This terminal has a green color, linear pinning arrangement, and features solder pins with dimensions of 3.6 mm in length. The terminals are packaged in cardboard.
Specifications
Connector Amperage
41 Amp
Connector Material
I
Connector Material
PA
Connector Voltage
6 Kv
Connector Voltage
8 Kv
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Sub Component
PCB Terminal Block
Number of Positions
1
Component
PCB
Number of Connections
1
Connector Voltage
1000 Volt
Features
Tool-free lever principle enables time-saving connection and release of conductors with/without ferrules
Clear lever positions provide reliable feedback on opened or closed clamping spaces
Defined contact force ensures that contact remains stable over the long term
Time-saving push-in connection when lever is closed
Intuitive operation, thanks to a color-coded actuation lever
