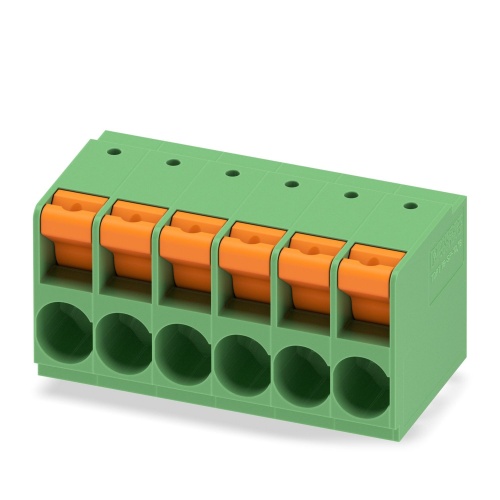

Phoenix Contact 1017535 The printed circuit board terminal features a nominal current rating of 76 A and is designed to operate at a maximum voltage of 1000 V with a recommended cross-sectional area of 16 mm². The terminal has six potentials, one row with six positions, and a pitch of 10.16 mm utilizing push-in spring connections for mounting via wave soldering. The conductor-PCB connection direction is set to 0°, with pins colored green and arranged in a zigzag pattern. Each potential includes two solder pins measuring 3.5 mm in length, while the terminals are packaged in cardboard.
