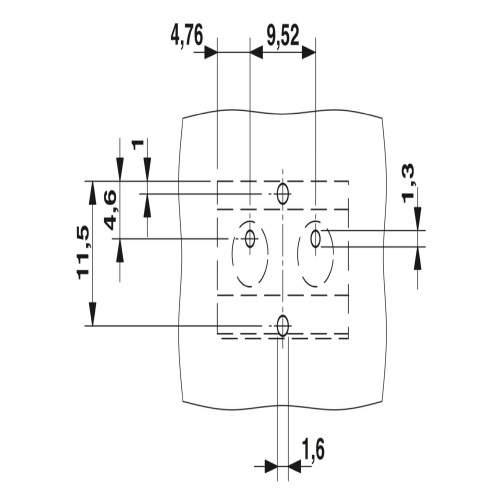

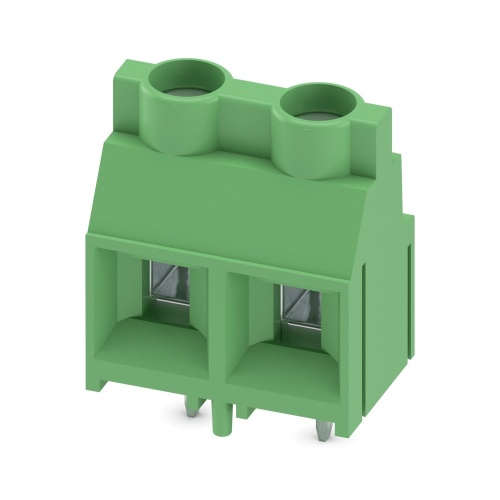

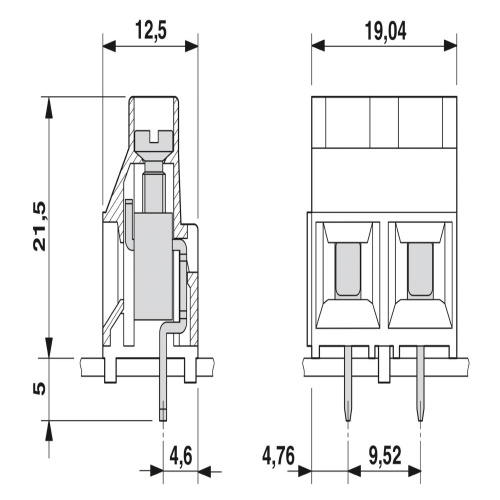

Phoenix Contact 1710072 A printed circuit board terminal has a nominal current rating of 32 A and is designed for a rated voltage of 1000 V, with a cross-sectional area of 4 mm². This terminal features two potentials, one row with two positions each, and is part of the MKDSV 5 product range, with a pitch of 9.52 mm. Connection to the board can be made via screw connections with tension sleeves, using L slotted screw heads for mounting through wave soldering, with solder pins aligned in a linear layout. The terminal has a green color and is packaged in cardboard, offering flexibility to align the article for different numbers of positions.
