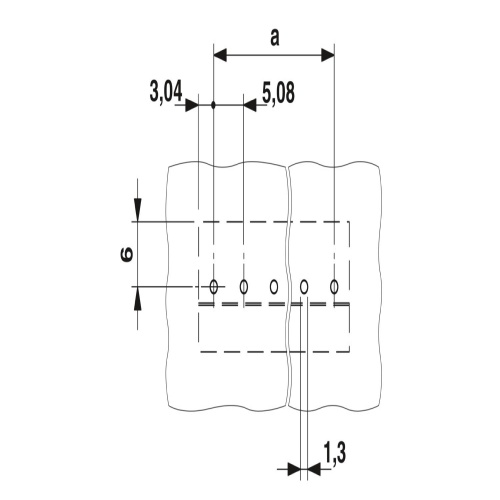

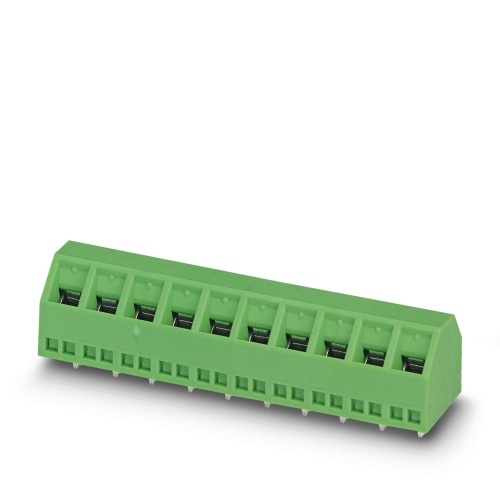

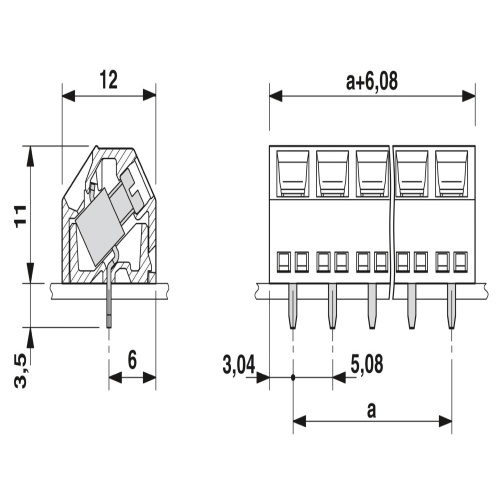

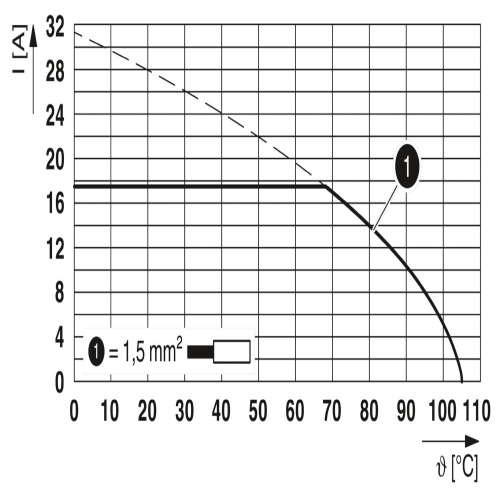

Phoenix Contact 1869253 A printed circuit board terminal has a nominal current rating of 17.5 A, a maximum rated voltage (III/2) of 400 V and a cross-sectional area of 1.5 mm², featuring six potentials with one row containing six positions each. The product falls within the SMKDSN 1,5 range, with a pitch of 5.08 mm, using screw connections secured by tension sleeves. The terminals are mounted via wave soldering and have a 45° conductor to PCB connection orientation, colored green, arranged in a linear pin layout and featuring solder pins of 3.5 mm length, typically packaged in cardboard.
