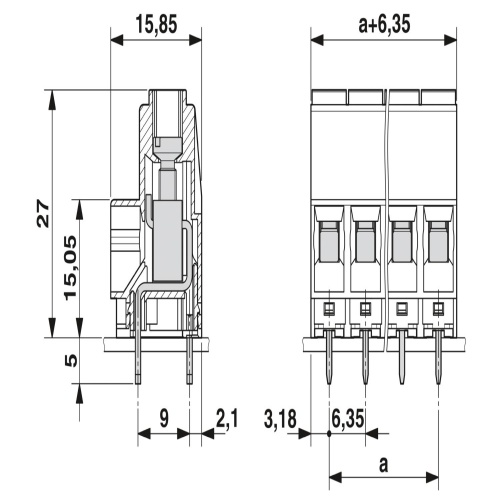

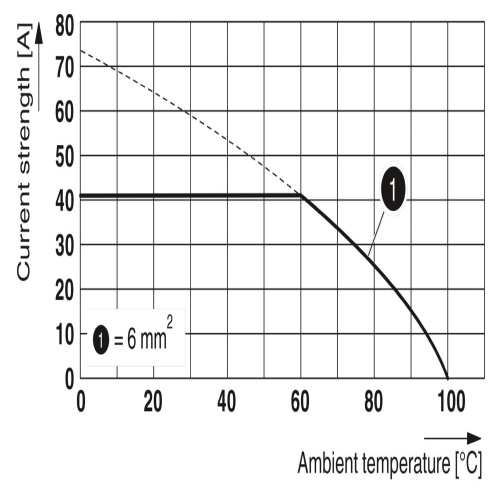

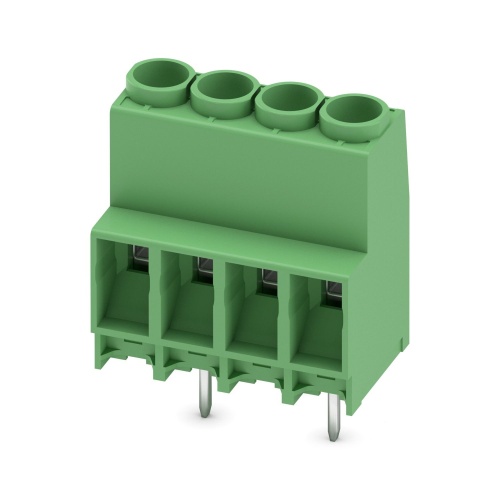

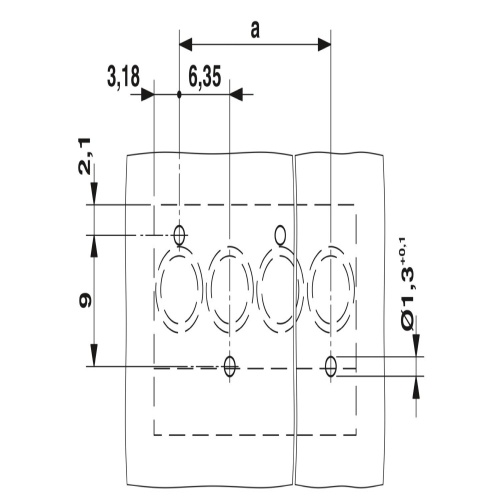

Phoenix Contact 1777561 A printed circuit board terminal features a nominal current rating of 41 A and a maximum allowed voltage of 1000 V, with a cross-sectional area of 4 mm². The terminal has four potentials, one row with four positions, and is part of the MKDS 5 N HV product range. The pitch between pins is 6.35 mm, allowing for screw connections with tension sleeves, which are secured using L-slotted screw heads. Wave soldering is used for mounting, while conductor and PCB connections occur at a 0° angle, typically marked by green color-coded pins arranged in a zigzag pattern.
