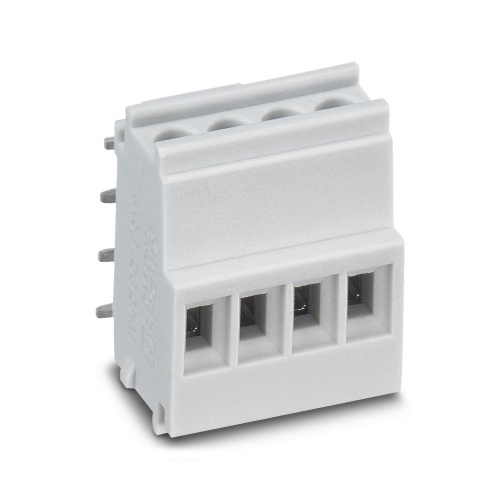

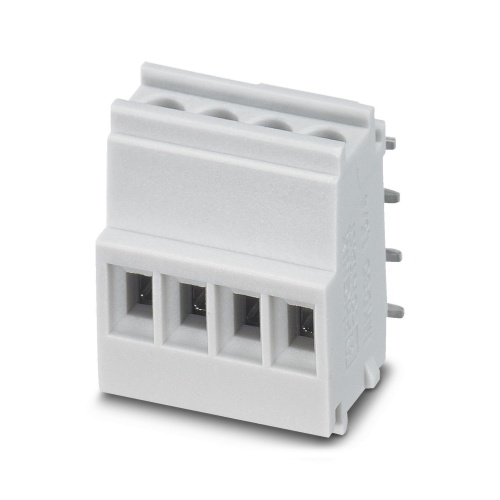

Phoenix Contact 2278429 A printed circuit board terminal has a nominal current capacity of 8 A and is rated for a maximum voltage of 160 V (III/2). The cross-sectional area is 1.5 mm² and features four potentials, arranged in a single row of 4 positions with a pitch of 3.5 mm. Connections are made using screw attachments with tension sleeves, applied through wave soldering techniques at a 0° angle. The color is light gray, and the pin layout follows a linear arrangement. Each potential has three solder pins, one per position, while the entire product comes packaged in cardboard on the right side of the terminal.
