Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 146798

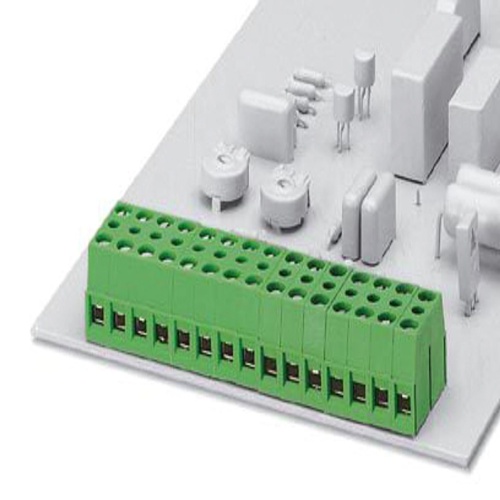

Phoenix Contact 1780895 PCB terminal block KDSP 1,5/ 3
Normally In Stock
Phoenix Contact 1780895 KDSP 1,5/ 3 ,Copper Alloy,PA,I PCB terminal block *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$15.07
Sale Price
$12.56
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

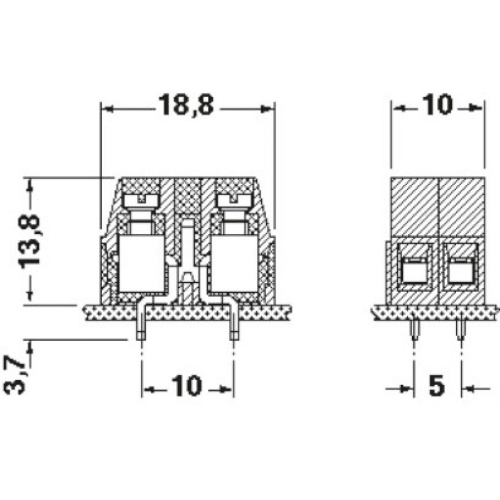

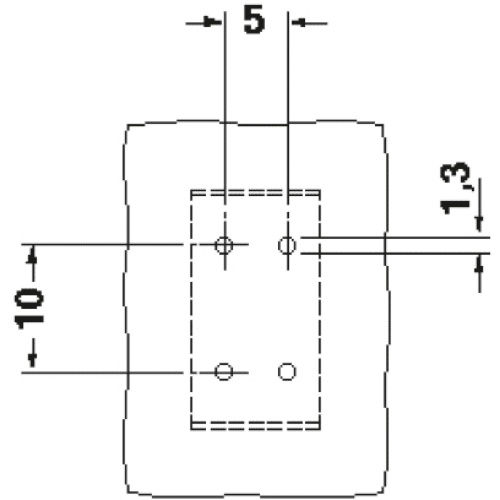

Phoenix Contact 1780895 A printed circuit board terminal has specific specifications, including a nominal current of 17.5 A, rated voltage of 400 V, and a cross-sectional area of 1.5 mm2. It has three potential connections, one row with three positions, and uses screw connections with tension sleeves. The pitch is 5 mm, allowing for flexibility in the number of positions created when using the article, which can be aligned to suit various needs.
Specifications
Terminal Block Voltage Rating
400 Volt
Terminal Block Voltage Rating
630 Volt
Terminal Block Number of Connections
6
Terminal Block Amperage
17.5 Amp
Terminal Block Voltage Rating
320 Volt
Manufacturer
Phoenix Contact
Component
PCB Terminal Block
Terminal Block Voltage Rating
4 Kv
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Quick and convenient testing using integrated test option
Potentials can be easily looped through with additional connection to the PCB
Two solder pins reduce the mechanical strain on the soldering spots
The latching on the side enables various numbers of positions to be combined
