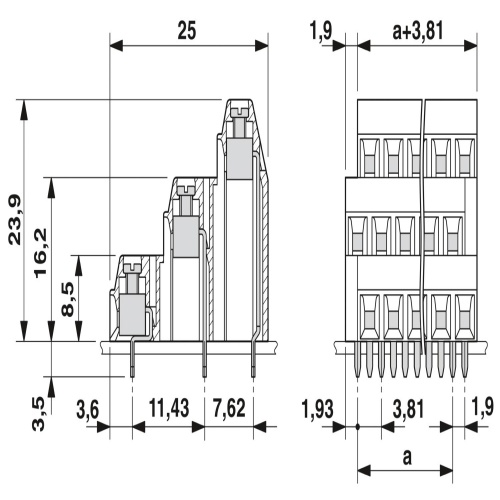

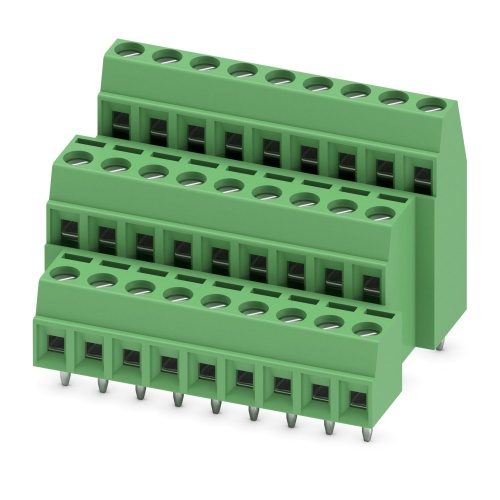

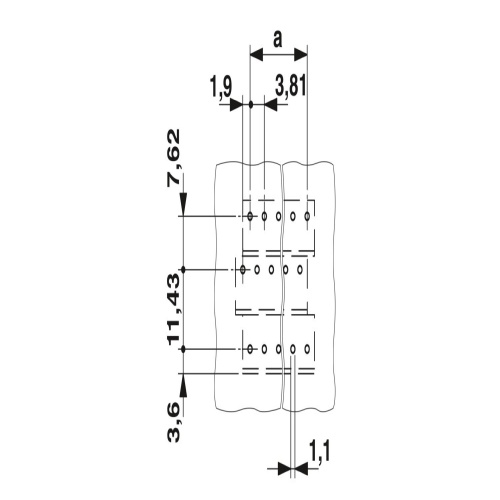

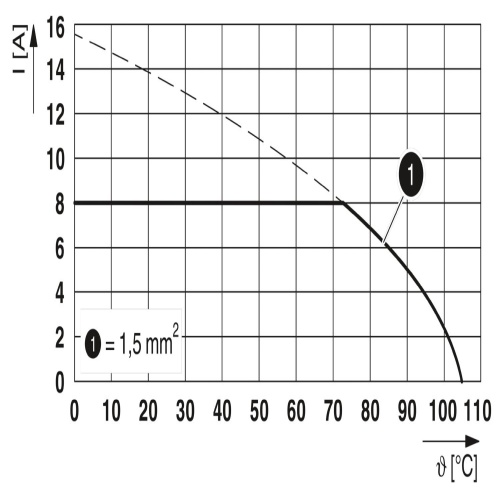

Phoenix Contact 1727803 A printed circuit board terminal features a nominal current of 8 A and is rated for a voltage of 160 V (III/2). It has a cross-sectional area of 1 mm², with 27 potentials and arranged in three rows of nine positions each. The product range is the MK3DS 1 series, with a pitch of 3.81 mm, utilizing screw connections with tension sleeves featuring L slotted screw heads for mounting via wave soldering at a 0° angle. The terminal's color is green, with linear pinning and a solder pin length of 3.5 mm, each potential having one solder pin, packaged in cardboard.
