Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 146630

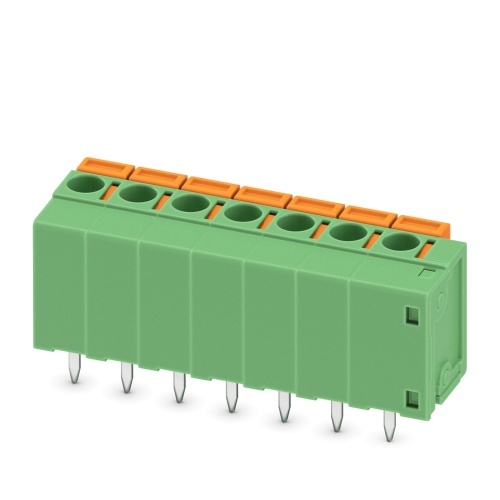

Phoenix Contact 1791981 PCB terminal block FFKDSA1/V1-5,08- 7
Normally In Stock
Phoenix Contact 1791981 FFKDSA1/V1-5,08- 7 ,Copper Alloy,PA,I PCB terminal block *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day *NON-CANCELLABLE, NON-RETURNABLE*
$9.19
Sale Price
$7.66
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1791981 A printed circuit board terminal has specific specifications, including a nominal current of 15 A and a rated voltage of 400 V at III/2. The terminal's dimensions are 1.5 mm² in cross-section and is part of the FFKDS(A)/V1 product range with a pitch of 5.08 mm. It features push-in spring connections, wave soldering mounting, and linear pinning. Each potential has two solder pins, measuring 3.4 mm long, while the terminal itself is colored green and is connected in a 90° direction to the conductor/PCB. The terminal's packaging consists of cardboard.
Specifications
Terminal Block Voltage Rating
400 Volt
Terminal Block Voltage Rating
250 Volt
Terminal Block Voltage Rating
630 Volt
Terminal Block Number of Connections
7
Terminal Block Amperage
15 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Printed Circuit Board Terminal
Terminal Block Voltage Rating
4 Kv
Model Type
FFKDSA1
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Operation and conductor connection from one direction enable integration into front of device
Two solder pins reduce the mechanical strain on the soldering spots
The latching on the side enables various numbers of positions to be combined
Vertical connection enables multi-row arrangement on the PCB
