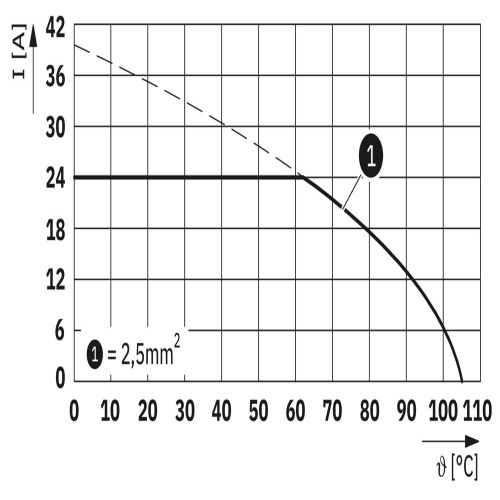

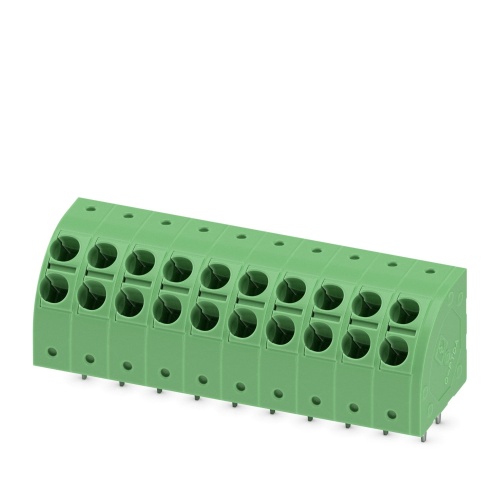

Phoenix Contact 1725406 The printed circuit board terminal has a nominal current capacity of 24 A and is rated for a voltage of 400 V at II/2 category. It features a cross-section area of 2.5 mm² and consists of 10 potentials with a linear pinning layout, arranged in a single row of 10 positions. The product falls under the PTDA 2,5/ range and has a pitch of 5 mm, utilizing push-in spring connections for mounting via wave soldering. The connection direction is at 45°, and the terminal is colored green. Each potential has two solder pins, one measuring 3.5 mm in length, and is packaged within cardboard packaging.
