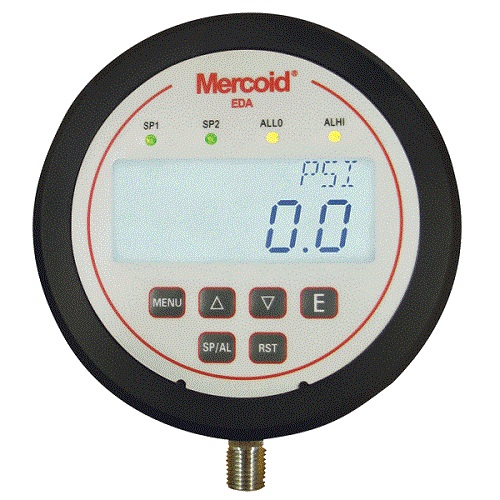

Dwyer Mercoid EDAW-N1E1-05T0 Pressure Controller
Normally In Stock
Code: 14327
Dwyer Mercoid EDAW-N1E1-05T0 Pressure Controller Weatherproof Single Pressure Gauge/Switch 0-150 psi Range 1/4" NPT Connection Two SPDT Switches and Digital Display.
Condition: New
Usually ships Same Day or Next Day$624.80
Sale Price
$520.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer Mercoid EDAW-N1E1-05T0 Pressure Controller Weatherproof Single Pressure Gauge/Switch 0-150 psi Range 1/4" NPT Connection Two SPDT Switches,Digital Display 316 Stainless Connection Fully Programmable Zero/Span with Two Setpoints,Metric or English Units
Specifications
Component
Pressure Controller
(Instrument-Sensor) Application
Compatible Liquids And Gases
(Instrument-Sensor) Indication
Digital
(Instrument-Sensor) Span
150 PSI
(Instrument-Sensor) Measurement Accuracy
1.0%
Manufacturer
Dwyer Instruments
Features
Can replace separate gages, two switches and a transmitter in a system saving money, installation time, and panel space with its versatile and compact functionality
Meets simple and complex application needs with fully programmable software
Easily test switch and transmitter output function through the test mode that simulates input over the range without pressuring the system
Protection in case of sensor failure, over pressure, high temperature limit, low temperature limit, or keypad short with failsafe relay output choices
Even wear on duplex pump applications via selectable alternation of the set points between relays
Ideal for a wide variety of applications with panel mount,flush mount, or pipe mount ability due to its rugged weatherproof housing
Eliminate the need of a step down transformer with the -HV 120/240 VAC power option
