Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

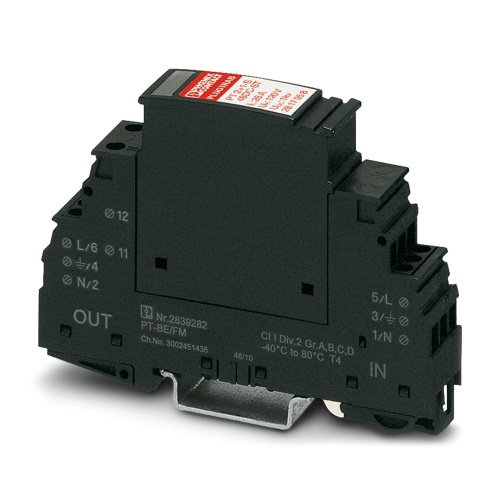

Phoenix Contact 2817958 Type 3 surge protection device PT 2+1-S-48DC/FM
Normally In Stock
Code: 1155
PT 2+1-S-48DC/FM Phoenix Contact PT 2+1-S-48DC/FM Rail-mountable surge arrester as device protection for terminal equipment, fault signal in the plug and signaling contact in the base element, 2-section,
Condition: New
Usually ships within 7-14 days. Call for ship time.$282.68
Sale Price
$235.57
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2817958 A rail-mountable surge arrester is a type of protective device designed to safeguard terminal equipment from power surges while also providing a fault signal through the plug and a signaling contact within the base element, offering two-section, pluggable functionality for a design powered by 48V DC.
Specifications
Surge Protector Mount
Din Rail Mount
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
48 Volt
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
55.2 Volt
Component
Surge Protection Device
Features
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Permanent protective device monitoring with optical signaling via LED
Downloads
Phoenix 2817958 CAD data International.dxfPhoenix 2817958 CAD data International.pdfPhoenix 2817958 CAD data International.stpPhoenix 2817958 CAD Drawing.zipPhoenix 2817958 EPLAN Macro International.z13Phoenix 2817958 EPLAN Macro International.zipPhoenix 2817958 Flyer English.pdfPhoenix 2817958 Manufacturers declaration English.pdfPhoenix 2817958 Manufacturers declaration International.pdfPhoenix 2817958 Package Slip International.pdfPhoenix 2817958 Product Information English.pdfPhoenix 2817958 Software International.zipPhoenix 2817958 Spec Sheet.pdfPhoenix 2817958 Surge Protection English.pdfPhoenix 2817958 Tender Text English.zipPhoenix 2817958 User Manual.pdf
