Phoenix Contact 2856689 Type 2 surge arrester VAL-MS 320/3+1/FM-UD
Normally In Stock
Code: 1150

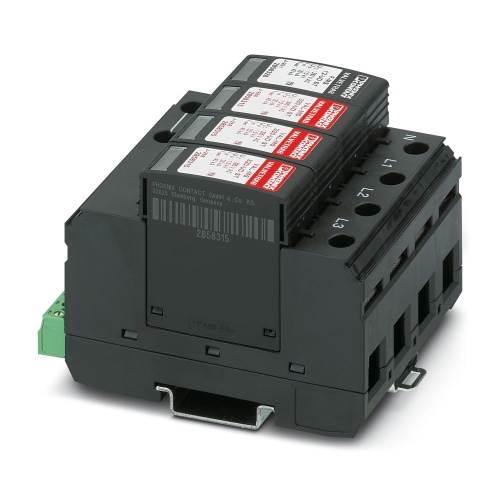

VAL-MS 320/3+1/FM-UD Phoenix Contact VAL-MS 320/3+1/FM-UD Surge voltage arrester consisting of base element with remote indicator contact and ground connectors, for mounting on NS 35/7.5, nominal voltage: 320 V AC, 3 + 1 circuit
Condition: New
Usually ships Same Day or Next Day$736.81
Sale Price
$614.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2856689 A surge voltage arrester featuring a base element with remote indicator contact and ground connectors is designed for installation on the NS 35/7.5 rail system, operating at a nominal AC voltage of 320V and accommodating three-phase plus single-phase circuits.
Specifications
Surge Protector Mount
Din Rail Mount
Manufacturer
Phoenix Contact
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP

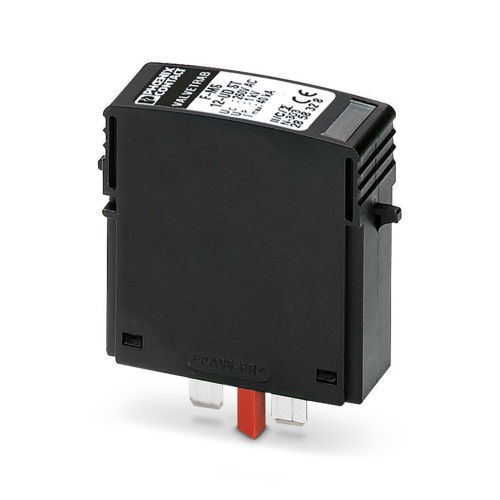

Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
Downloads
Phoenix 2856689 CAD data International.dxfPhoenix 2856689 CAD data International.pdfPhoenix 2856689 CAD data International.stpPhoenix 2856689 CAD Drawing.zipPhoenix 2856689 EPLAN Macro International.zipPhoenix 2856689 Flyer English.pdfPhoenix 2856689 Manufacturers declaration English.pdfPhoenix 2856689 Manufacturers declaration International.pdfPhoenix 2856689 Package Slip International.pdfPhoenix 2856689 Software International.zipPhoenix 2856689 Spec Sheet.pdfPhoenix 2856689 Surge Protection English.pdfPhoenix 2856689 Tender Text English.zipPhoenix 2856689 User Manual.pdf
