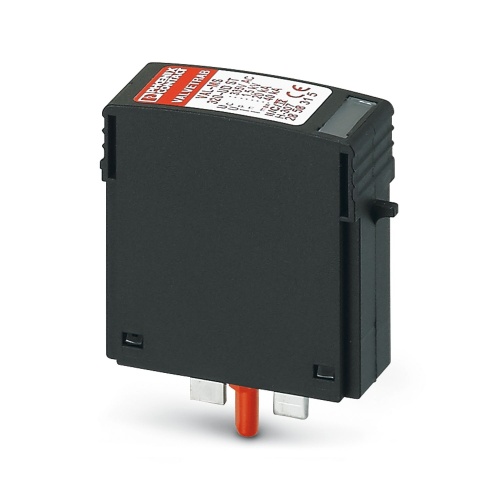

Phoenix Contact 2858315 Type 2 surge protection plug VAL-MS 320-UD ST
Normally In Stock
Code: 1153
VAL-MS 320-UD ST Phoenix Contact VAL-MS 320-UD ST Surge protection connector type 2 with high-capacity varistor for VAL-MS base element, thermal monitoring, visual fault warning. Design: 320 V AC
Condition: New
Usually ships Same Day or Next Day$129.18
Sale Price
$107.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2858315 A surge protection connector type 2 is designed for the VAL-MS base element and features a high-capacity varistor that provides reliable protection against electrical surges. The device also includes thermal monitoring to detect overheating conditions and a visual fault warning system to alert users of any issues, all within a 320 V AC design framework.
Specifications
Surge Protector Mount
Din Rail Mount
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
385 Volt
Nominal Discharge Current
20 Ka
Surge Protector Line Voltage
240-415 Volt
Component
Surge Protection Plug
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
Downloads
Phoenix 2858315 CAD data International.dxfPhoenix 2858315 CAD data International.pdfPhoenix 2858315 CAD data International.stpPhoenix 2858315 CAD Drawing.zipPhoenix 2858315 Flyer English.pdfPhoenix 2858315 Manufacturers declaration English.pdfPhoenix 2858315 Manufacturers declaration International.pdfPhoenix 2858315 Package Slip International.pdfPhoenix 2858315 Software International.zipPhoenix 2858315 Spec Sheet.pdfPhoenix 2858315 Surge Protection English.pdfPhoenix 2858315 Tender Text English.zipPhoenix 2858315 User Manual.pdf
