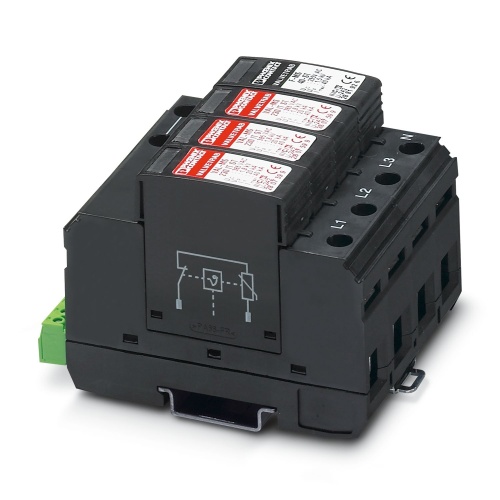

Phoenix Contact 2838199 Type 2 surge arrester VAL-MS 230/3+1 FM
Normally In Stock
Code: 1139
VAL-MS 230/3+1 FM Phoenix Contact VAL-MS 230/3+1 FM Surge voltage arrester consisting of base element with remote indicator contact and ground connectors, for mounting on NS 35/7.5,
Condition: New
Usually ships Same Day or Next Day$681.41
Sale Price
$567.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2838199 A surge voltage arrester consisting of a base element with remote indicator contacts and ground connectors is designed for installation on the NS 35/7.5 standard, featuring a nominal operating voltage of 230 V AC and supporting a 3-phase plus 1-circuit configuration.
Specifications
Surge Protector Mount
Din Rail Mount
Manufacturer
Phoenix Contact
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
Downloads
Phoenix 2838199 CAD data International.dxfPhoenix 2838199 CAD data International.pdfPhoenix 2838199 CAD data International.stpPhoenix 2838199 CAD Drawing.zipPhoenix 2838199 EPLAN Macro International.zipPhoenix 2838199 Flyer English.pdfPhoenix 2838199 Manufacturers declaration English.pdfPhoenix 2838199 Manufacturers declaration International.pdfPhoenix 2838199 Package Slip International.pdfPhoenix 2838199 Product Information English.pdfPhoenix 2838199 Software International.zipPhoenix 2838199 Spec Sheet.pdfPhoenix 2838199 Surge Protection English.pdfPhoenix 2838199 Tender Text English.zipPhoenix 2838199 User Manual.pdf
