Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 1138

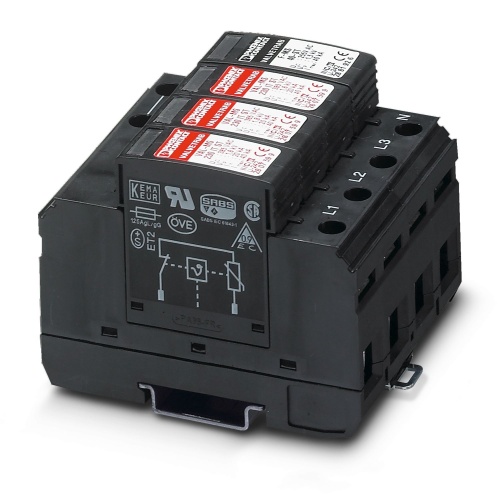

Phoenix Contact 2838209 Type 2 surge arrester VAL-MS 230/3+1
Normally In Stock
VAL-MS 230/3+1 Phoenix Contact VAL-MS 230/3+1 Surge arrester consisting of base element and ground connectors, for mounting on NS 35/7, 5, nominal voltage: 230 V AC, 3 + 1 circuit
Condition: New
Usually ships Same Day or Next Day$643.73
Sale Price
$536.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2838209 A surge arrester designed to mount on the NS 35/7.5 standard, featuring a base element and ground connectors, operates at a nominal voltage of 230 V AC for use in three-phase plus one electrical circuits.
Specifications
Surge Protector Mount
Din Rail Mount
Manufacturer
Phoenix Contact
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
Downloads
Phoenix 2838209 CAD data International.dxfPhoenix 2838209 CAD data International.pdfPhoenix 2838209 CAD data International.stpPhoenix 2838209 CAD Drawing.zipPhoenix 2838209 EPLAN Macro International.zipPhoenix 2838209 Flyer English.pdfPhoenix 2838209 Manufacturers declaration English.pdfPhoenix 2838209 Manufacturers declaration International.pdfPhoenix 2838209 Package Slip International.pdfPhoenix 2838209 Software International.zipPhoenix 2838209 Spec Sheet.pdfPhoenix 2838209 Surge Protection English.pdfPhoenix 2838209 Tender Text English.zipPhoenix 2838209 User Manual.pdf
