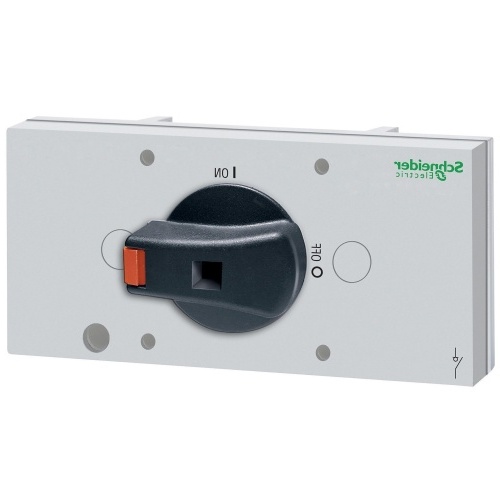

Schneider Electric VLS8M2 TeSys VLS - Coupling system for 6-8P switch disconnectors - size 2 (63...125 A)
Normally In Stock
Code: 113445
Schneider VLS8M2 EAC Mechanical interlock Black IP20 1 padlock 0.16 in (4 mm CSA C22.2 No 4, UL98 0 - 1 Coupling accessory 21734 - TESYS VLS DISCONNECT SWITCHES 2.05 in (5.2 cm 0.25 lb(US (0.11 kg 2.87 in (7.3 cm 00785901572985 5.67 in (14.4 cm TeSys TeSys VARIO LS VLS3P Tesys VL
Condition: New
Normally Stocked$125.81
Sale Price
$104.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TeSys VLS - Coupling system for 6-8P switch disconnectors - size 2 (63...125 A)
Specifications
Component
Mechanical Interlock
Manufacturer
Schneider Electric
Features
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more
This family of disconnect switches has switches ranging from 16A to 125A
The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated
The 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated
This mechanical coupling system is used with two VLS3P030R2, two VLS3P063R2, two VLS3P80R2, two VLSP100R2 or two VLS3P125R2 DIN rail mount switches
Mechanical coupling system is supplied with a black handle
Rotary handle will accept one 0.16 in padlock
Interlock is marked 1 - 0 - 2
Mechanical interlock is 1.77 inches tall, 5.51 inches wide and 1.06 inches deep
It weighs 0.17 lbs
This mechanical interlock is cULus Listed and meets IEC 60947-3 requirements.
