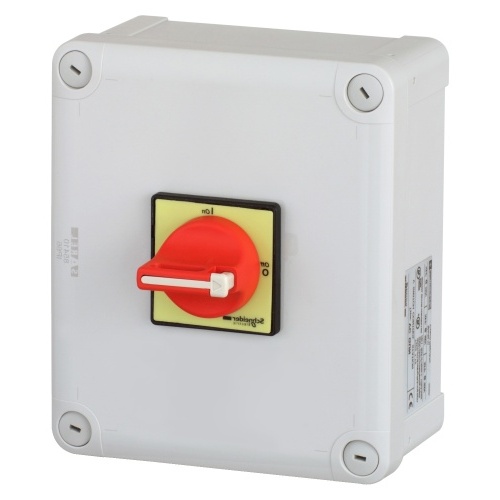

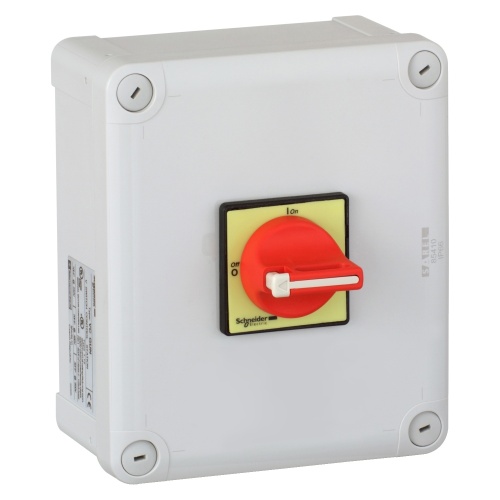

Schneider Electric VC3GUN TeSys Vario enclosed, emergency switch disconnector, 45A, UL/CSA
Normally In Stock
Code: 113247
Schneider VC3GUN 3P 41.5 A AC-23A400 V Enclosed emergency stop switch disconnector 690 V AC 50/60 Hz High performance Red 50.0 A IEC 690 V, 45 A UL 600 V 50 A IP65 IEC 60529 1 to 3 padlocks 0.16-0.31 in (4-8 mm IEC 60947-4-1, CSA C22.2 No 14, UL 508, IEC 60204 0 - 1 VC-GUN 21730
Condition: New
Normally Stocked$371.77
Sale Price
$309.81
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TeSys Vario enclosed, emergency switch disconnector, 45A, UL/CSA
Specifications
Manufacturer
Schneider Electric
Component
Enclosed Emergency Stop Switch Disconnector
Features
VC3GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 30HP@600V
It provides an IP65 / NEMA type 12 enclosure, V3 Vario switch disconnector and red & yellow operator
VC3GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 30HP@600V
It includes a V3 Vario switch disconnector rated 45A conforming UL/CSA
It provides an IP65 / NEMA type 12 enclosure with a red & yellow operator
Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC)
Enclosed switch disconnector including a 3-pole switch-disconnector Vario V3 model
Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 n° 14)
NEMA type 12 enclosure rating, IP65 protection degree, sealable
Operating red handle for emergency stop, padlockable
Connections directly on the screw clamp terminals of the switch
Possible attachment of 2 add-on poles to the switch body , main (VZ3), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20).
