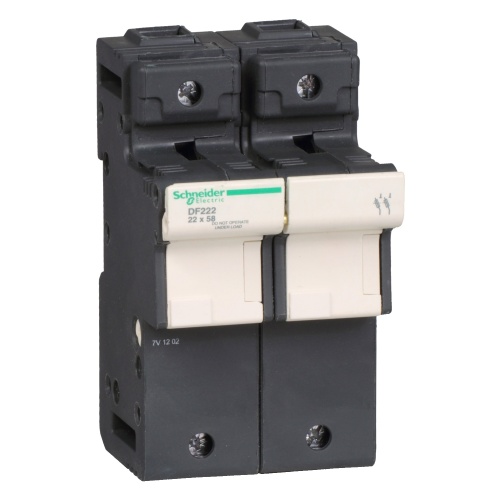

Schneider Electric DF222 Fuse carrier TeSys DF, 2P 125A, fuse size 22x58 mm
Normally In Stock
Code: 113111
Schneider DF222 2P 125 A 22 x 58 mm IEC, UL Recognized, CSA, EAC Fuse carrier 690 V AC, 690 V DC IP20 IEC 60529 DF2FA fuse cartridge, DF2FN fuse cartridge EN/IEC 60947-3, EN/IEC 60269-2, UL 4248-1, CSA C22.2 No 4248-1 , aM, , gG DF22 19 kA with tubular links IEC 60269-1 Disconnec (MUST BUY IN PACKS OF 3)
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$130.50
Sale Price
$108.75
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Fuse carrier TeSys DF, 2P 125A, fuse size 22x58 mm
Specifications
Manufacturer
Schneider Electric
Component
Fuse Carrier
Features
TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 125A/690V
To be used with 22x58mm fuse links up to 125A and short circuit current up to 120kA@400V

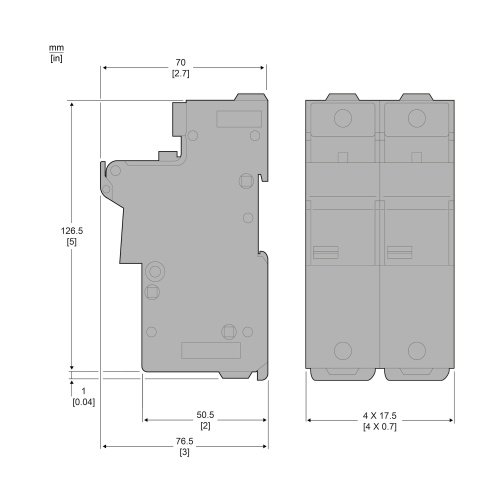

Compact (70mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals

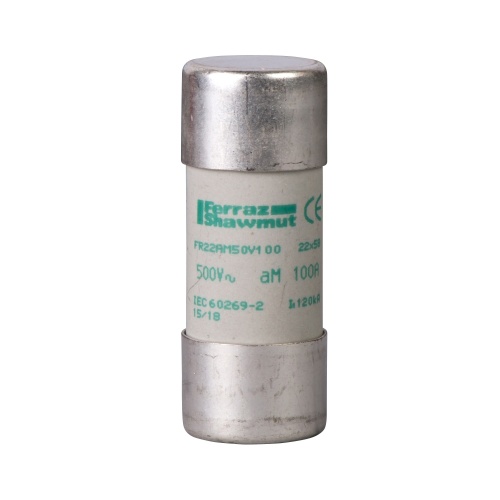

Fuse links (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately)
Sold in lots of 3 units
Multi standards certified (IEC, UL recognized, CSA, EAC).
