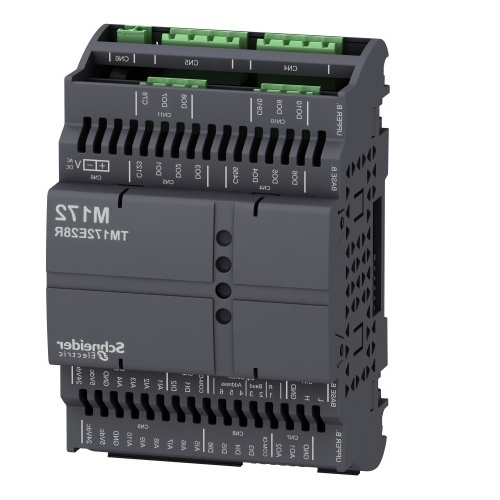

Schneider Electric TM172E28R Modicon M172 Optimized and Performance expansion 28 I/Os
Normally In Stock
Code: 110910
Schneider TM3SAC5RG Safety module 10 V relay output Emergency stop monitoring 1-channel wiring, Emergency stop monitoring 2-channel wiring, Monitoring of a movable guard with 2 switches and automatic start 24 V - 15-20 % DC For emergency stop and switch monitoring Can reach PL d/
Condition: New
Normally Stocked$350.45
Sale Price
$292.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Modicon M172 Optimized and Performance expansion 28 I/Os
Specifications
(Modicon PLC) Analog Input Type
Current 0-20 Ma
(Modicon PLC) Analog Input Type
Current 4-20 Ma
(Modicon PLC) Digital Inputs
4
(Modicon PLC) Analog Outputs
2
(Modicon PLC) Digital Inputs
2
(Modicon PLC) Analog Input Type
Voltage 0-10 V
(Modicon PLC) Analog Input Type
Voltage 0-5 V
(Modicon PLC) Digital Outputs
3 Relay Outputs SPST With Same Common
(Modicon PLC) Digital Outputs
2 Relay Outputs SPST With Same Common
(Modicon PLC) Analog Inputs
10 Configurable By Pair
(Modicon PLC) Total Comm Ports
1
(Modicon PLC) Analog Input Type
Pt 1000 Temperature Probe
(Modicon PLC) Analog Input Type
NTC Temperature Probe
(Modicon PLC) Analog Input Type
Impedance
(Modicon PLC) Comm Ports
1 CAN Port
(Modicon PLC) Digital Input Type
Positive Logic
Manufacturer
Schneider Electric
Component
Accessories
Sub Component
I/O Module
Features
This product is part of the Modicon M171/M172 range, an offer I/O modules for HVAC solutions
This additional I/O module offers 6 discrete inputs with 2 display positive logic (sink) up to 2kHz and 4 display positive logic (sink)
It is a module with discrete input voltage of 24V AC/DC, 2.5mA
It offers 10 configurable by pair analogue input with 2 programmable analogue outputs
It is an IP20 rated product
Its dimensions are 72mm (width) x 59mm (depth) x 110mm (height)
It weighs 0.19kg
The main application of this module is HVAC control
This product is certified by CE, RCM, EAC, CSA and CURus
It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards
It is suitable for DIN rail mount and panel mounting with accessory
Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172
Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
