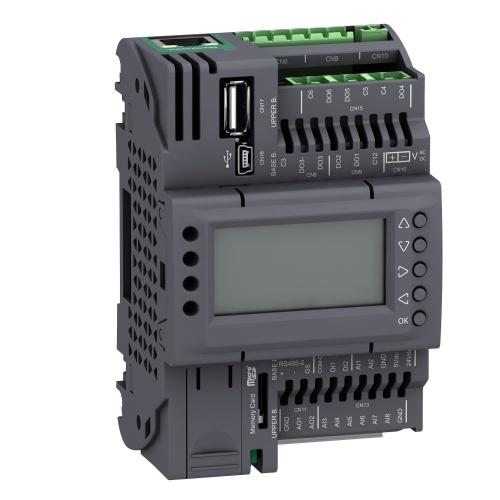

Schneider Electric TM172PDG18R Modicon M172 Performance Display 18 I/Os, Ethernet, Modbus
Normally In Stock
Code: 110902
Schneider TM5SBET7 Remote transmitter module Communication between remote I/O Motion controller, Logic controller 24 V DC - 15-20 % White IP20IEC 61131-2, IP67 IP20 modular I/O-system Expansion modules "Slice" Remote
Condition: New
CALL FOR LEAD TIME$557.52
Sale Price
$464.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Modicon M172 Performance Display 18 I/Os, Ethernet, Modbus
Specifications
(Modicon PLC) Analog Outputs
2
(Modicon PLC) Analog Input Type
Current 0-20 Ma/4-20 Ma
(Modicon PLC) Digital Inputs
2
(Modicon PLC) Analog Input Type
Voltage 0-10 V
(Modicon PLC) Analog Input Type
Voltage 0-5 V
(Modicon PLC) Digital Outputs
1 Relay Outputs SPDT With Independent Common
(Modicon PLC) Digital Outputs
2 Relay Outputs SPST With Same Common
(Modicon PLC) Digital Outputs
3 Relay Outputs SPST With Independent Common
(Modicon PLC) Analog Inputs
8 Configurable By Pair
(Modicon PLC) Digital Input Type
Sink Or Source
(Modicon PLC) Comm Ports
1 USB Type A
(Modicon PLC) Total Comm Ports
6
(Modicon PLC) Comm Ports
1 RJ45
(Modicon PLC) Analog Input Type
Pt 1000 Temperature Probe
(Modicon PLC) Comm Ports
2 RS485
(Modicon PLC) Analog Input Type
NTC Temperature Probe
(Modicon PLC) Comm Ports
1 CAN Port
(Modicon PLC) Comm Ports
1 USB Type Mini B
(Modicon PLC) Analog Input Type
Impedanc
(Modicon PLC) Analog Input Type
PTC Temperature Probe
Manufacturer
Schneider Electric
Component
M172 Nano PLC Programmable Controllers
(Modicon PLC) Total Analog Signals
For Connected Machines
Features
This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions
This programmable controller offers 2 discrete inputs with sink or source (positive/negative) up to 2kHz discrete logic
It is a module with discrete input voltage of 24V AC/DC, 5mA
It features 3 LEDs for programmable and 1 LED for power signaling
It is an IP20 rated product
Its dimensions are 72mm (width) x 60.5mm (depth) x 110mm (height)
It weighs 0.225kg
The main application of this module is HVAC control
This product is certified by CE, RCM, EAC, CSA and CURus
It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards
It is suitable for DIN rail mount and panel mounting with accessory
Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172
Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
