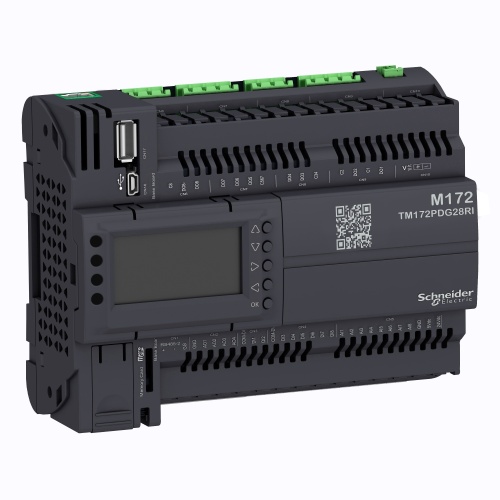

Schneider Electric TM172PDG28RI Modicon M172 Performance Display 28 I/Os, Eth, Isolated
Normally In Stock
Code: 110899
Schneider HMIYBMKT11 Maintenance kit IP20 modular I/O-system Accessories Maintenance Kit
Condition: New
CALL FOR LEAD TIME$615.43
Sale Price
$512.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Modicon M172 Performance Display 28 I/Os, Eth, Isolated
Specifications
(Modicon PLC) Digital Inputs
8
(Modicon PLC) Analog Outputs
4
(Modicon PLC) Analog Input Type
Current 0-20 Ma/4-20 Ma
(Modicon PLC) Analog Input Type
Voltage 0-10 V
(Modicon PLC) Digital Outputs
1 Relay Outputs SPDT With Independent Common
(Modicon PLC) Digital Outputs
3 Relay Outputs SPST With Same Common
(Modicon PLC) Digital Outputs
2 Relay Outputs SPST With Independent Common
(Modicon PLC) Digital Outputs
2 Relay Outputs SPST With Same Common
(Modicon PLC) Analog Inputs
8 Configurable By Pair
(Modicon PLC) Digital Input Type
Sink Or Source
(Modicon PLC) Comm Ports
1 USB Type A
(Modicon PLC) Total Comm Ports
6
(Modicon PLC) Comm Ports
1 RJ45
(Modicon PLC) Comm Ports
2 RS485
(Modicon PLC) Analog Input Type
NTC Temperature Probe
(Modicon PLC) Analog Input Type
Impedance
(Modicon PLC) Comm Ports
1 CAN Port
(Modicon PLC) Comm Ports
1 USB Type Mini B
Manufacturer
Schneider Electric
Component
M172 Nano PLC Programmable Controllers
(Modicon PLC) Total Analog Signals
For Connected Machines
Features
This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions
This programmable controller offers 8 discrete inputs with sink or source (positive/negative) discrete logic
It is a module with discrete input voltage of 24V AC/DC, 2.5mA
It offers 8 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, ±0V to ±10V
It features 3 LEDs for programmable and 1 LED for power signaling
It is an IP20 rated product
Its dimensions are 144mm (width) x 60.5mm (depth) x 110mm (height)
It weighs 0.3kg
The main application of this module is HVAC control
This product is certified by CE, EAC, CSA and CURus
It meets EN/IEC 60730 standard
It is suitable for DIN rail mount and panel mounting with accessory
Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172
Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
