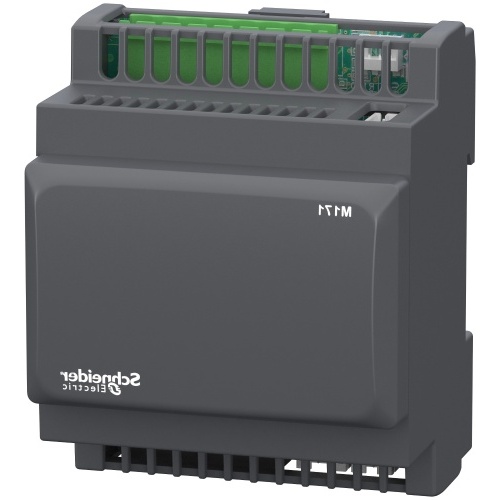

Schneider Electric TM171OBM22R Modicon M171 Optimized Blind 22 I/Os, Modbus
Normally In Stock
Code: 110889
Schneider TM3DQ8R 8 8 Discrete output module Relay normally open 11 x 2.5 mm² removable screw terminal block pitch 5.08 mm for outputs Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit IP20 with protective cover in place Inp
Condition: New
CALL FOR LEAD TIME$242.23
Sale Price
$201.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Modicon M171 Optimized Blind 22 I/Os, Modbus
Specifications
(Modicon PLC) Digital Inputs
6
(Modicon PLC) Analog Input Type
Current 0-20 Ma/4-20 Ma
(Modicon PLC) Analog Input Type
Voltage 0-10 V
(Modicon PLC) Analog Inputs
2 Configurable
(Modicon PLC) Analog Inputs
3 Analog Input NTC
(Modicon PLC) Analog Input Type
Voltage 0-1 V
(Modicon PLC) Analog Input Type
Voltage 0-5 V
(Modicon PLC) Digital Outputs
3 Relay Outputs SPST With Same Common
(Modicon PLC) Comm Ports
1 LAN Expansion Bus
(Modicon PLC) Digital Outputs
1 Open Collector
(Modicon PLC) Digital Outputs
2 Relay Outputs SPST With Independent Common
(Modicon PLC) Total Comm Ports
2
(Modicon PLC) Comm Ports
1 RS485
(Modicon PLC) Analog Outputs
3
(Modicon PLC) Analog Input Type
Temperature Probe
Manufacturer
Schneider Electric
Component
M171 Controller
(Modicon PLC) Total Analog Signals
For Simple & Compact Machines
Features
This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions
This controller offers 6 discrete inputs with sink or source (positive/negative) discrete input logic
The rated supply voltage ranges from 12V to 24V, ±10% AC
It is an IP20 rated product
Its dimensions are 70.2mm (width) x 61.6mm (depth) x 87mm (height)
It weighs 0.19kg
The main application of this module is HVAC and pumping solution
This product is certified by CE, CURus, CSA and EAC
It meets EN/IEC 60730 standard
It is suitable for flush mount
Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172
Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
