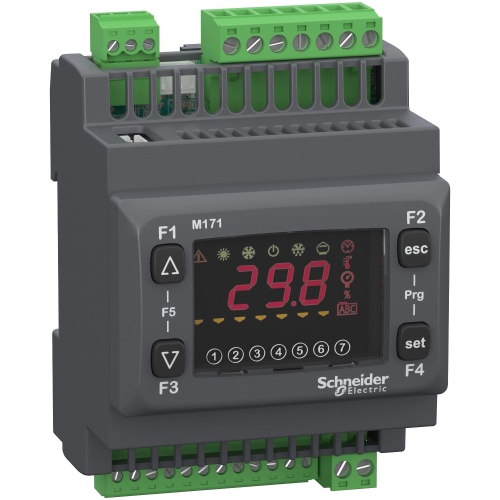

Schneider Electric TM171ODM14R Modicon M171 Optimized Display 14I/O Modbus 100-240Vac
Normally In Stock
Code: 110885

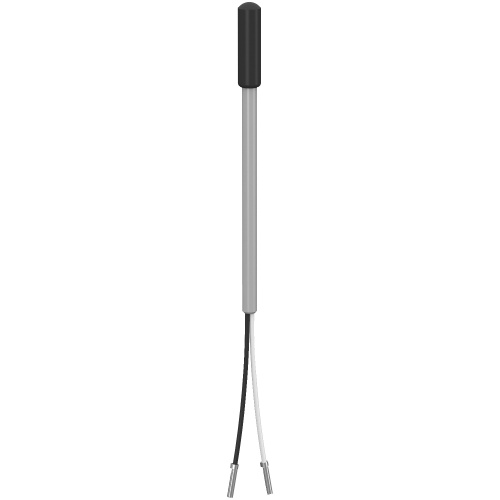

Schneider TM1STNTCWN75750 Indoor temperature measurement Probe Screw-clamp terminals Mounting box NTC IP30 Modicon M171 2.95 in (75 mm 2.95 in (75 mm 1.00 in (25.5 mm 22537 - M171 / M172 HVAC CONTROLLERS PC12 03606480752957 1 0.14 lb(US (0.06 kg No DE 0.300 dm 0.750 dm 0.800 dm W
Condition: New
CALL FOR LEAD TIME$253.03
Sale Price
$210.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Modicon M171 Optimized Display 14I/O Modbus 100-240Vac
Specifications
(Modicon PLC) Analog Input Type
Current 0-20 Ma/4-20 Ma
(Modicon PLC) Digital Inputs
2
(Modicon PLC) Analog Input Type
Voltage 0-10 V
(Modicon PLC) Analog Inputs
2 Configurable
(Modicon PLC) Analog Inputs
3 Analog Input NTC
(Modicon PLC) Analog Input Type
Voltage 0-1 V
(Modicon PLC) Analog Input Type
Voltage 0-5 V
(Modicon PLC) Digital Outputs
1 Relay Outputs SPDT With Independent Common
(Modicon PLC) Digital Outputs
3 Relay Outputs SPST With Same Common
(Modicon PLC) Comm Ports
1 LAN Expansion Bus
(Modicon PLC) Total Comm Ports
2
(Modicon PLC) Comm Ports
1 RS485
(Modicon PLC) Analog Input Type
Pt 1000 Temperature Probe
(Modicon PLC) Analog Input Type
NTC Temperature Probe
(Modicon PLC) Analog Outputs
5
Manufacturer
Schneider Electric
Component
M171 Controller
(Modicon PLC) Total Analog Signals
For Simple & Compact Machines
Features
This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions
This controller offers 2 discrete inputs with sink or source (positive/negative) discrete input logic
The rated supply voltage ranges from 100V to 240V, ±10% AC
It is an IP20 rated product
Its dimensions are 70.2mm (width) x 61.7mm (depth) x 87mm (height)
It weighs 0.19kg
The main application of this module is HVAC and pumping solution
This product is certified by CE, CURus, CSA and EAC
It meets EN/IEC 60730 standard
It is suitable for DIN rail mount
Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172
Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
