Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

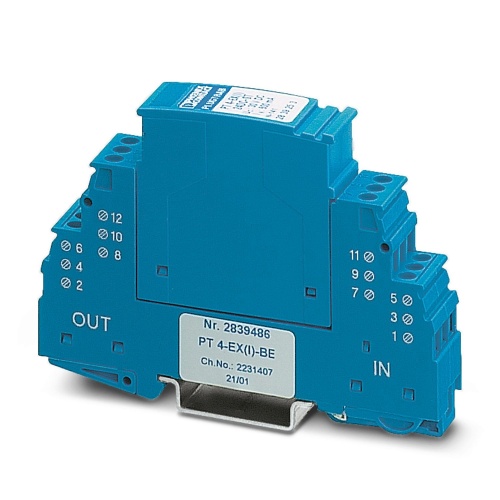

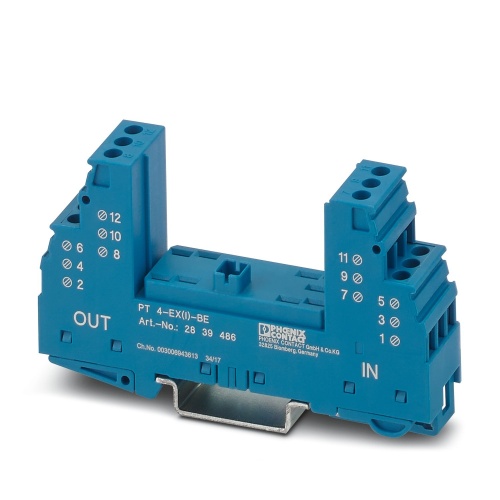

Phoenix Contact 2839486 Surge protection base-element PT 4-EX(I)-BE
Normally In Stock
Code: 10633

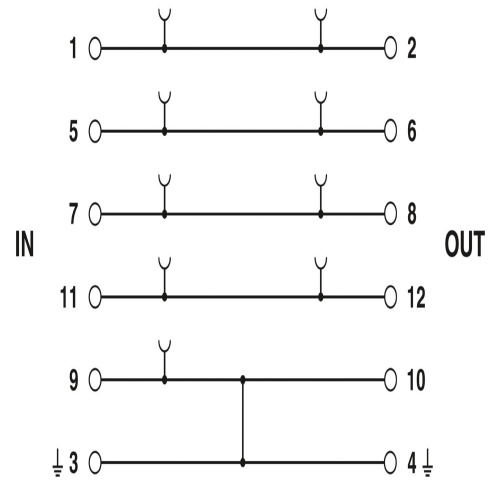

PT 4-EX(I)-BE Phoenix Contact Transient Surge Suppressor PT 4-EX(I)-BE Base element for protective plug PT with protective circuit for a 4-core floating EEx ia signal circuit. Nominal voltage: 24 V DC.
Condition: New
Usually ships Same Day or Next Day$165.29
Sale Price
$137.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

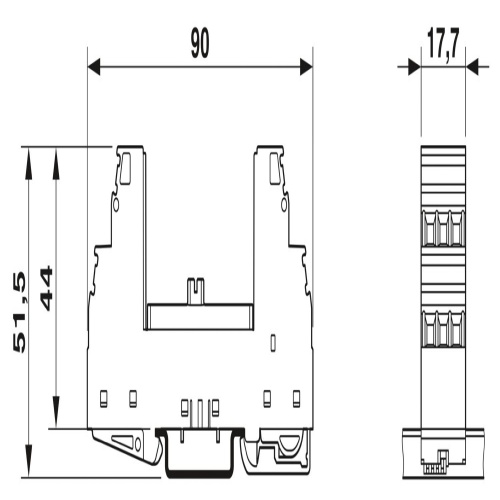

Phoenix Contact 2839486 The base element for a protective plug is designed for use with a 4-core floating ExeX ia signal circuit featuring a protective circuit, suitable for nominal voltages of 24V DC. This component is intended for mounting on the NS 35/7.5 and NS 35/15 housing types, with a specified housing width of 17.5mm.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Component
Accessories
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
100 Volt
Nominal Discharge Current
15 Ka
Sub Component
Base Element
Features
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2839486 CAD data International.dxfPhoenix 2839486 CAD data International.pdfPhoenix 2839486 CAD data International.stpPhoenix 2839486 CAD Drawing.zipPhoenix 2839486 Certification International.pdfPhoenix 2839486 Flyer English.pdfPhoenix 2839486 Manufacturers declaration English.pdfPhoenix 2839486 Manufacturers declaration International.pdfPhoenix 2839486 Package Slip International.pdfPhoenix 2839486 Software International.zipPhoenix 2839486 Spec Sheet.pdfPhoenix 2839486 Surge Protection English.pdfPhoenix 2839486 Tender Text English.zipPhoenix 2839486 User Manual.pdf
Code: 10633
Phoenix Contact 2839486 Surge protection base-element PT 4-EX(I)-BE
$165.29
Sale Price
$137.74
