Phoenix Contact 2839253 Surge protection plug PT 4-EX(I)-24DC-ST
Normally In Stock
Code: 10632
PT 4-EX(I)-24DC-ST Phoenix Contact Transient Surge Suppressor PT 4-EX(I)-24DC-ST Protective plug PT with protective circuit for a 4-core floating EEx ia signal circuit. Nominal voltage: 24 V DC
Condition: New
Usually ships Same Day or Next Day$459.53
Sale Price
$382.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

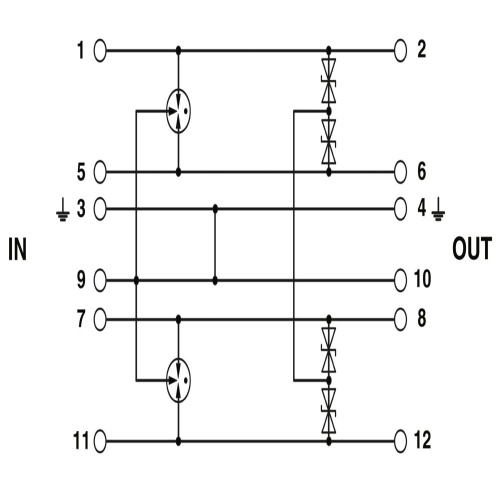

Phoenix Contact 2839253 A protective connector featuring a built-in protective circuit is used in a 4-wire floating Ex-i signal circuit, with an operating voltage of 24 volts direct current (DC).
Specifications
Fault Warning
Optical
Arrester Class according to IEC
C1
Arrester Class according to IEC
C3
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Nominal Discharge Current
300 Amp
Connection Method
Push-In Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
15 Volt
Component
Surge Protection Plug
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2839253 CAD data International.dxfPhoenix 2839253 CAD data International.pdfPhoenix 2839253 CAD data International.stpPhoenix 2839253 CAD Drawing.zipPhoenix 2839253 Certification English.pdfPhoenix 2839253 Certification International.pdfPhoenix 2839253 Flyer English.pdfPhoenix 2839253 Manufacturers declaration International.pdfPhoenix 2839253 Package Slip International.pdfPhoenix 2839253 Software International.zipPhoenix 2839253 Spec Sheet.pdfPhoenix 2839253 Surge Protection English.pdfPhoenix 2839253 Tender Text English.zipPhoenix 2839253 User Manual.pdf
