Code: 10611

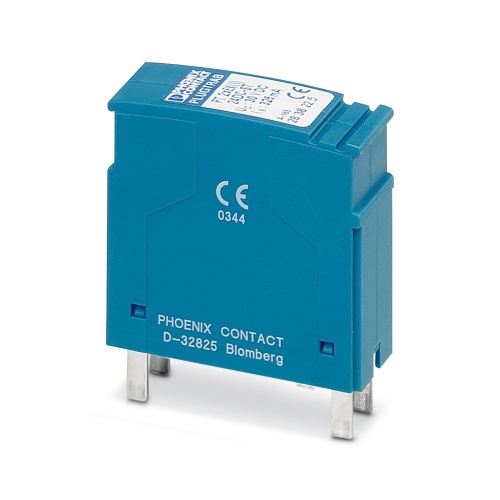

Phoenix Contact 2838225 Surge protection plug PT 2XEX(I)-24DC-ST
Normally In Stock
PT 2XEX(I)-24DC-ST Phoenix Contact Transient Surge Suppressor PT 2XEX(I)-24DC-ST Protective plug PT with protective circuit for two 2-core floating EEx ia signal circuits. Nominal voltage: 24 V DC
Condition: New
Usually ships Same Day or Next Day$464.93
Sale Price
$387.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2838225 A protective plug is designed to safeguard two-wire floating Ex i signal circuits operating at a nominal voltage of 24 V DC, and is compatible with the Hart communication protocol.
Specifications
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Push-In Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
30 Volt
Nominal Discharge Current
5 Ka
Component
Surge Protection Plug
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2838225 CAD data International.dxfPhoenix 2838225 CAD data International.pdfPhoenix 2838225 CAD data International.stpPhoenix 2838225 CAD Drawing.dxfPhoenix 2838225 Certification English.pdfPhoenix 2838225 Certification International.pdfPhoenix 2838225 EPLAN Macro International.z13Phoenix 2838225 EPLAN Macro International.zipPhoenix 2838225 Flyer English.pdfPhoenix 2838225 Manufacturers declaration International.pdfPhoenix 2838225 Package Slip International.pdfPhoenix 2838225 Product Information English.pdfPhoenix 2838225 Software International.zipPhoenix 2838225 Spec Sheet.zipPhoenix 2838225 Surge Protection English.pdfPhoenix 2838225 Tender Text English.zipPhoenix 2838225 User Manual.pdf
